IBOX-103-2L2C

The IBOX-007pro system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.

首页 » 产品 » IBOX-103-2L2C

Features

The body is made of all-aluminium alloy material, which has strong anti-interference ability and is suitable for use in industrial environments.
The design adopts modular structure, which allows flexible replacement and expansion of components as needed to adapt to different application requirements.
Adopting fully enclosed fanless design, cooling by natural heat dissipation reduces the risk of mechanical failure and is suitable for harsh environments.
The internal design does not use conventional cable connections, enhancing vibration resistance and improving the reliability of the unit.
Various interfaces are designed with a reasonable layout for easy connection and maintenance, which improves the convenience of use.
The dual-board design provides a variety of interfaces to meet the needs of a wide range of peripheral connections.
Supporting a wide range of Intel® CPU models, including i5-6200U, i5-8265U, i5-10210U and Celeron® 5205U, users can choose the right processor according to their performance needs.
Provides 1 to 2 DDR4 SO-DIMM slots to support up to 64GB of memory for high performance computing needs.
Equipped with 1 x 2.5″ SATA3.0 HDD bay and 1 x M.2 2280 slot (SATA3.0 only) to meet different storage needs.
With an operating temperature range of -10 to 55 degrees Celsius and a storage temperature range of -40 to 85 degrees Celsius, it is able to operate stably under different environmental conditions and is suitable for various industrial applications.

Overview

The IBOX-103-2L2C Embedded Mini PC features Intel® Core™ 8th to 10th generation processors, giving you more computing power and cost advantages. Dual-channel SO-DIMM DDRM Dual-channel SO-DIMM DDR4 provides up to 64 GB of memory and supports multiple displays via HDMI and DP. It is dust-proof, interference-resistant, and temperature-resistant. A rich set of I/O interfaces including 2LAN, 2COM, 4USB3.0 and 4USB2.0 are available to meet the requirements of most markets. Desktop mounting is easy, with an M.2 interface for Wi-Fi and a SIM card slot for expansion.

Specification

MODEL	IBOX-103-2L2C
Supported OS	Win 7, Win 8, Win 10, Linux (Ubuntu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT
CPU	Model	Intel® Core™ I5-6200U	Intel® Core™ I5-8265U	Intel® Celeron® 5205U	Intel® Core™ I5-10210U
RAM	Type & No.	1* DDR4 SO-DIMM Socket	2* DDR4 SO-DIMM Socket	2* DDR4 SO-DIMM Socket	2* DDR4 SO-DIMM Socket
	Frequency	2133 MHz	2400 MHz	2400 MHz	2666 MHz
	Capacity	Up to 32GB	Up to 32GB	Up to 64GB	Up to 64GB
Storage Devices	SATA	1* 2.5″ SATA3.0 Bay on board (6Gb/s)
	M.2	1* M.2 2280 M-key slot (SATA3.0 only)
I/O INTERFACE	COM	2* RS232/485, DB9 connector
	Ethernet	2* Intel i211 GbE LAN	2* RTL 8111H GbE LAN
	USB	4* USB 2.0; 4* USB 3.0
	Video	1* DP, support 4096×2304@60Hz, it can be changed to HDMI port, support 4096×2304@24Hz; 1* HDMI, support 4096×2304@24Hz
	Audio	1* MIC, 1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662
	SIM	1* External SIM card slot connected to Mini-PCIe
	Power supply	12V DC; 1* DC Jack (5.5* 2.5mm)
	Other	1* Auto-On Switch
Extended Capabilities	Additional Internal Interface	1* Full Size Mini-PCIe with SIM card slot (PCIe+USB2.0); 1* M.2 2230 E-key slot (PCIe+USB2.0, support WiFi+BT)
Environment	Operating Temperature	-10 ~ 55 °C w/ 0.7m/s Airflow
	Storage Temperature	-40 ~ 85 °C (-40~185 °F)
	Relative Humidity	40 °C @ 95%, Non-Condensing
Physical Characteristics	Dimensions	141* 62* 127.5mm (W* H* D)
	Net Weight	1.2 KG
Regulation	EMC	CE/FCC Class B, CCC
	Safety	CE-LVD, RoHS, CCC

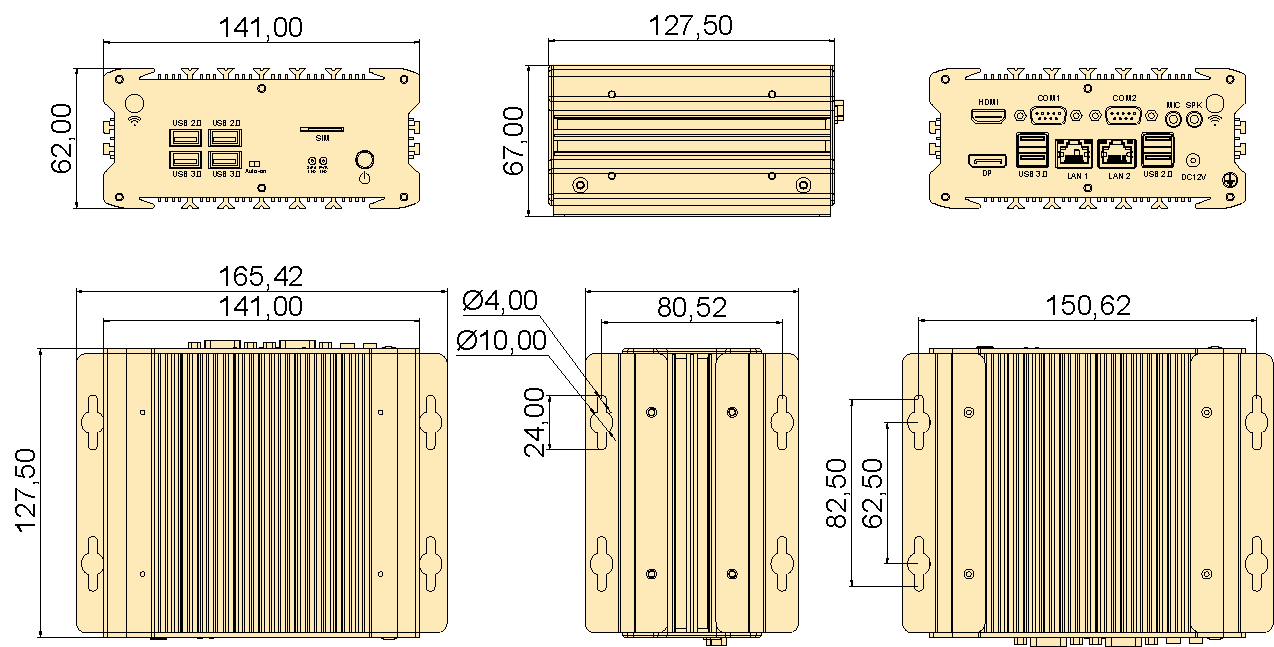

Drawings

Processor Info

CPU	Code Name	Total Cores	Total Threads	Max Turbo Frequency	Base Frequency	Cache	TDP	Memory Types	Integrated Graphics
Intel® Core™ I5-6200U	Skylake	2	4	2.80 GHz	2.30 GHz	3 MB Intel® Smart Cache	15W	DDR4	Intel® HD Graphics 520
Intel® Core™ I5-8265U	Whiskey Lake	4	8	3.90 GHz	1.60 GHz	6 MB Intel® Smart Cache	15W	DDR4	Intel® UHD Graphics 620
Intel® Celeron® 5205U	Whiskey Lake	2	2	/	1.90 GHz	2 MB	15W	DDR4	Intel® UHD Graphics
Intel® Core™ I5-10210U	Comet Lake	4	8	4.20 GHz	1.60 GHz	6 MB Intel® Smart Cache	15W	DDR4	Intel® UHD Graphics 620

Accessories

Optional Items	Max Qty	Description
AI Acceleration Card	1	13 TOPS, Connected by Mini-PCIe interface
4G Module	1	Connected by Mini-PCIe interface
WiFi Module without AP mode	1	Connected by Mini-PCIe interface or M.2 interface
WiFi Module with AP mode	1	Connected by Mini-PCIe interface
Dual channel CAN-Bus Module	1	Connected by Mini-PCIe interface
