IBOX-103-2L3C

The IBOX-103-2L3C system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.
  • Full aluminum alloy structure for excellent anti-interference capabilities, suitable for industrial environments with complex electromagnetic conditions.
  • Modular parts design allows for flexible replacement and upgrade of components, offering strong scalability to meet different application needs.
  • Fully enclosed design with a fanless cooling system effectively reduces the device temperature through natural heat dissipation, minimizing mechanical failures and making it suitable for harsh environments.
  • Cable-free internal design enhances vibration resistance and improves device reliability.
  • Scientific and reasonable interface layout with various interfaces, including multiple USB, COM, Ethernet, and video output interfaces, ensuring easy connection and maintenance.
  • Compatible with multiple operating systems, including Windows 7/8/10/11, Linux (Ubuntu, Debian, Kali, CentOS, etc.), WES 7, and Windows 10 IoT, adapting to different software environments.
  • Equipped with a range of Intel® Core™ and Intel® Celeron® processors, providing options from high-performance to low-power usage, catering to various application requirements.
  • Flexible memory configurations with DDR4 and DDR3L SO-DIMM sockets, supporting capacities up to 32GB, meeting different storage needs.
  • Multiple storage options with M.2 (NGFF) slots and SATA interfaces, supporting diverse storage configurations to meet different requirements.
  • Extended capabilities through additional internal interfaces like M.2 and Mini-PCIe slots, allowing the expansion of WiFi, Bluetooth, 4G/5G modules, and other functionalities, enhancing the system’s versatility and application range.

IBOX-103-2L3C:Equipped with 8th to 11th generation intelligent Intel® Core™ processors and a ruggedised enclosure. In addition to sufficient functional I/O options, it also provides device and edge analytics solutions. Key Features: Up to 32GB DDR4 SODIMM , Multiple RS232/422/485 options, HDMI, M.2 (NGFF) 2242 B-key Slot (SATA3.0) SIM card support  8-bit GPIO,Mic-in Wide range DC input 12V-28V. Lightweight and miniature, easy to use and install.

Model

IBOX-103-2L3C

Supported OS

Win 7, Win 8, Win 10, Win11, Linux (Ubuntu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT



CPU



Series/ Model

Intel® Core™ 11th Gen. CPU

Intel® Celeron® 6305E



Intel® Core™ 8th Gen. CPU



Intel® Celeron® J1900

TDP

28W default, 12W/15W BIOS optional

15W Base, 25W Max

10W Max





RAM

SO-DIMM

1* DDR4 SO-DIMM Socket

1* DDR4 SO-DIMM Socket

1* DDR3L SO-DIMM Socket

Frequency

3200MHz

2133/2400MHz

1600MHz

Capacity

Up to 32GB

Up to 16GB

Up to 8GB

Storage Devices

M.2

1* M.2 (NGFF) 2242 B-key Slot (SATA3.0)

1* M.2 (NGFF) 2242 B-key Slot, (SATA2.0)















I/O Interface



COM

2* RS232/485 witth Select Jumper (COM1/2, full lanes, DB9);

1* RS232/485 with Select Jumper (COM3, 2 lanes, 5-Pin, 2.54mm, Terminal Block, with PWR-ON signal)

Ethernet

1* Intel i211+1* Intel i219 GbE LAN

2* Intel i210 GbE LAN

USB

2* USB3.0+2*USB2.0

1*USB3.0+3*USB2.0

Video

1* HDMI, 4096×2304@60Hz;

1* HDMI, 4096×2304@24Hz

1* HDMI, 1920×1080@60Hz

Audio

1* Audio Header (Line-out + MIC); With 7.1 channel HD Audio Codec Realtek ALC897

SIM

1* External SIM card slot connected to M.2 B-key slot

Power supply

12V-28 DC; 1* DC Threaded Jack (5.5* 2.5mm)



Other

1* 8-bit GPIO, Terminal Block (10-Pin, 3.5mm), 4-Inputs/4-Outputs, 0-5V Input Range;

1* Remote Switch Terminal (5-Pin, 2.54mm, with COM3)

Extended

Capabilities

Additional

Internal Interface

1* M.2 3042/3052 B-key Slot with 1* Nano SIM Card Slot (PCIe+USB2.0, support 4G/5G, default 4G, 3042)

1* M.2 2230 E-key Slot (PCIe+USB2.0, support WiFi+BT)





Environment

Operating Temperature

-10 ~ 55 °C w/ 0.7m/s Airflow

Storage Temperature

-40 ~ 85 °C (-40~185 °F)

Relative Humidity

40 °C @ 95%, Non-Condensing

Physical Characteristics

Dimensions

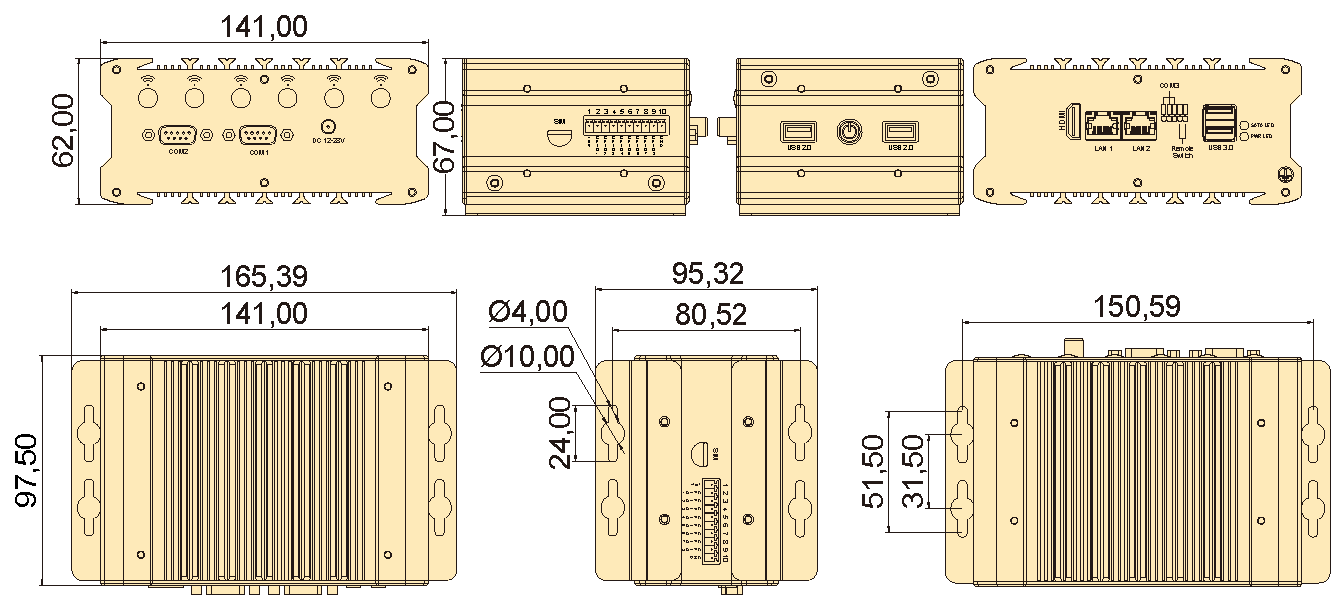

141* 62* 97.5 mm (W* H* D)

Net Weight

1.2 KG



Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC



CPU

Code Name

Total Cores

Total Threads

Max Turbo Frequency

Base Frequency

Cache

TDP

Memory Types

Integrated Graphics

Intel® Celeron® 6305E

Tiger Lake

2

2

–

1.80 GHz

4 MB Intel® Smart Cache

15W

DDR4

Intel® UHD Graphics

Intel® Core™ I3-1115G4

Tiger Lake

2

4

4.10 GHz

1.70 GHz

4 MB Intel® Smart Cache

12-28W

DDR4

Intel® Iris® Xe Graphics; 48Eus

Intel® Core™ I5-1135G7

Tiger Lake

4

8

4.20 GHz

2.40 GHz

8 MB Intel® Smart Cache

12-28W

DDR4

Intel® Iris® Xe Graphics; 80Eus

Intel® Core™ I7-1165G7

Tiger Lake

4

8

4.70 GHz

2.80 GHz

12 MB Intel® Smart Cache

12-28W

DDR4

Intel® Iris® Xe Graphics; 96Eus

Intel® Core™ I3-8145U

Whiskey Lake

2

4

3.90 GHz

2.10 GHz

4 MB Intel® Smart Cache

15W

DDR4

Intel® UHD Graphics 620

Intel® Core™ I5-8265U

Whiskey Lake

4

8

3.90 GHz

1.60 GHz

6 MB Intel® Smart Cache

15W

DDR4

Intel® UHD Graphics 620

Intel® Core™ I7-8565U

Whiskey Lake

4

8

4.60 GHz

1.80 GHz

8 MB Intel® Smart Cache

15W

DDR4

Intel® UHD Graphics 620

Intel® Celeron® J1900

Bay Trail

4

4

–

2.00 GHz

2 MB L2 Cache

10W

DDR3

Intel® HD Graphics

Optional Items

Max Qty

Description

4G Module

1

Connected by M.2 interface

5G Module

1

Connected by M.2 interface

WiFi Module without AP mode

1

Connected by M.2 interface
