IBOX-104V2-2L6C-12TH Embedded Mini PC with Intel® 12th Processor provides you more computing power and cost advantage. Dual-channel SO-DIMM DDR4 delivers up to 64GB of memory, supports HDMI+DP 4096×2304@24Hz, and is dust, interference, and temperature resistant. Wide range of I/O interfaces including 2LAN, 6COM, 6*USB3.0; 4*USB2.0 to meet the requirements of most markets. M.2 interface for Wi-Fi and SIM card slot for expansion and built-in Bluetooth. Easy desktop installation is possible.
Model | IBOX-104V2-2L6C-12TH | |||
Supported OS | Windows 10 IoT Enterprise 2021 LTSC, Windows 10 (21H2), Windows 11 (21H2) or later, Linux Kernel 5.17 or later | |||
CPU | Alder Lake-P | Intel® Core™ I3-1215U, Turbo Fre. 4.40GHz | Intel® Core™ I5-1235U, Turbo Fre. 4.40GHz | Intel® Core™ I7-1255U, Turbo Fre. 4.70GHz |
Cores & Threads | 2* P-cores, 4* E-Cores, 8 Threads | 2* P-cores, 8* E-Cores, 12 Threads | 2* P-cores, 8* E-Cores, 12 Threads | |
Graphics | Intel® UHD Graphics for 12th Gen Intel® Processors, up to 64Eus, 1.10 GHz | Intel® Iris® Xe Graphics eligible, up to 80 Eus, 1.20 GHz | Intel® Iris® Xe Graphics eligible, up to 96 Eus, 1.25 GHz | |
RAM | SO-DIMM | 1 * Non-ECC SO-DIMM Slot, support DDR4-3200MHz, up to 32GB | ||
Storage | M.2 | 1 * M.2 Key-M Slot (PCIe x4/ SATA, Default PCIe x4, Support PCIe x4 NVMe, 2280) | ||
SATA | 1 * SATA3.0 7P Connector (With 1 * SATA Power Wafer) | |||
I/O INTERFACE | COM | 1 * RS232/RS485/TTL (COM6, Wafer, 3 lanes, optional DB9 connector); 3 * RS232/TTL (COM3/4/5, Wafer, 3 lanes, optional DB9 connector); [1] 2 * RS232 (COM1/2, Wafer, Full lanes, optional DB9 connector) | ||
Ethernet | 1 * Intel® i219 GbE LAN (10/100/1000 Mbps, RJ45); 1 * Intel® i226 GbE LAN, (10/100/1000/2500 Mbps, RJ45) | |||
USB | 6 * USB3.0 (TYPE-A, Rear IO); 3 * USB2.0 (Wafer, Internal) [2][3] | |||
Video | 1 * HDMI (TYPE-A): max resolution up to 2048*1080@60Hz 1 * DP++ (TYPE-A): max resolution up to 4096*2304@60Hz | |||
Audio | Realtek Audio HAD Codec, 1 * Line-Out + MIC 2in1 3.5mm Jack; 1 * Amplifier Wafer, 3-W (per channel) into a 4-Ω Loads | |||
SIM | 1* Built-in SIM card slot connected to M.2 Key-B slot | |||
Power Supply | 1 * DC 12V Power Input Φ2.5mm Thread Jack (2P Terminal Block Optional, DC24V BOM Optional) 1 * DC 12V Power Input ATX 2*2P Connector | |||
Other | 1* 8-bit GPIO wafter; 1* Remote Switch wafter; 1* Reset wafter; 1* PWR LED; 1* HDD LED; 1 * CMOS Clear Jumper | |||
Extended Capabilities | Additional Internal Interface | 1 * M.2 Key-E Slot (PCIE+USB2.0, Default PCIE, Support WIFI, 2230) [1] 1 * M.2 Key-B Slot (PCIE + USB3.0 + USB2.0, Support 5G/4G, 2242/3052) [2] | ||
Environment | Operating Temp. | -10 ~ 50 °C w/ 0.7m/s Airflow | ||
Storage Temp. | -40 ~ 85 °C (-40~185 °F) | |||
Relative Humidity | 40 °C @ 95%, Non-Condensing | |||

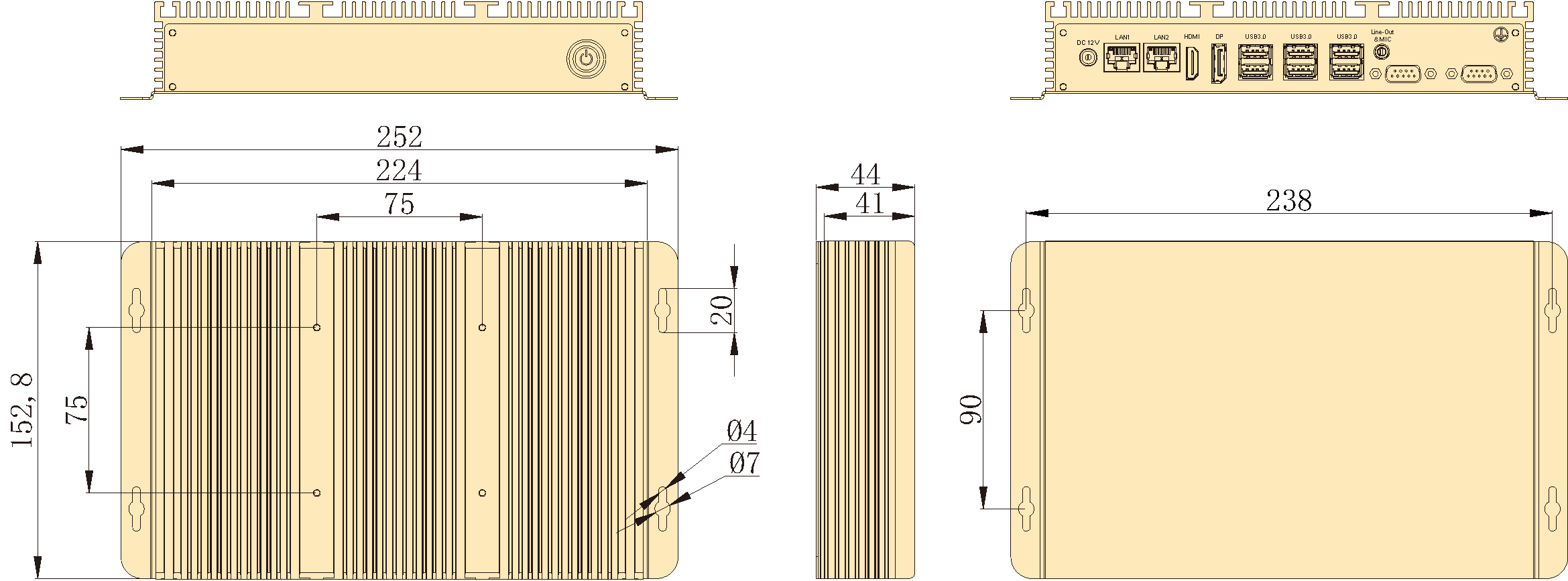

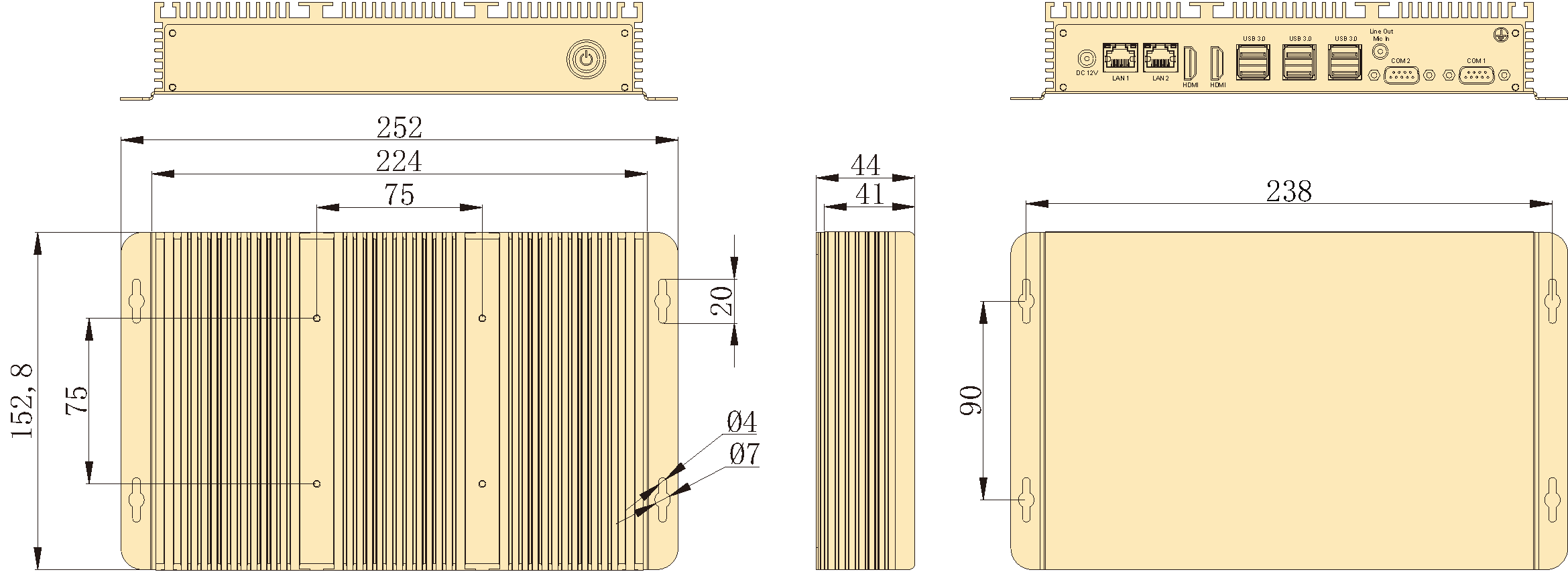

Physical Characteristics | Dimensions | 250* 44* 153 mm (W* H* D) (It has a higher version with 49mm solution) | ||
Net Weight | 1.5 KG | |||
Regulation | EMC | CE/FCC Class B, CCC | ||
Safety | CE-LVD, RoHS, CCC | |||
CPU | Code Name | P-Cores | E-Cores | Total Threads | P/E Core Max Turbo Frequency | Intel® Smart Cache | Base Power/ Max Turbo- Power | Memory Types | Integrated Graphics |
Intel® Core™ I3-1215U | Alder Lake-P | 2 | 4 | 8 | 4.40 / 3.3 GHz | 10 MB | 15W / 55W | DDR4 | Intel® UHD Graphics; 64Eus |
Intel® Core™ I5-1235U | Alder Lake-P | 2 | 8 | 12 | 4.40 / 3.5 GHz | 12 MB | 15W / 55W | DDR4 | Intel® Iris® Xe Graphics; 24Eus |
Intel® Core™ I7-1255U | Alder Lake-P | 2 | 8 | 12 | 4.70 / 3.5 GHz | 12 MB | 15W / 55W | DDR4 | Intel® Iris® Xe Graphics; 24Eus |
Optional Items | Max Qty | Description |
DC9-30V TO DC 12V PWR module | 1 | Phoenix Terminal connector, Power supply voltage conversion module, connected by header |
Isolated RS-232 | 6 | DB9 or Phoenix Terminal connector, connected by header |
Isolated 8-bit GPIO, 9-24V | 1 | Phoenix Terminal connector, connected by header |
4G Module | 1 | Connected by M.2 interface |
WiFi Module without AP mode | 1 | Connected by M.2 interface |
Dual channel CAN-Bus Module | 1 | Connected by M.2 interface |
