The IBOX-104V2-2L6C-NS is powered by Multi-Select Intel® Processor N95, Intel® Processor N97(Alder Lake-N ), supports up to 16GB of dual-channel SO-DIMM DDR4, dual independent displays via HDMI, VGA. 1M.2 for storage, optional SATA, built-in M.2 E-key slot for Wi-Fi, and a SIM card slot for desktop installation. It is dust, interference and temperature resistant. Full connectivity includes 2LAN,6COM,multiple USB ports in a compact, fanless design for edge computing, micro media servers, kiosks, PoS, retail, home or office use.
Model | IBOX-104V2-2L6C-NS | ||
Supported OS | Windows 10/11, Win 10 IoT; Linux Kernal 5.4 | ||
CPU | Processor info | Intel® Processor N95, 4* E-cores, Turbo Fre. 3.40GHz, TDP 15W | Intel® Processor N97, 4* E-cores, Turbo Fre. 3.60GHz, TDP 12W |
Graphics | Intel® UHD Graphics, up to 16 EUs, 1.20 GHz | Intel® UHD Graphics, up to 24 EUs, 1.20 GHz | |
RAM | SO-DIMM | 1 * Non-ECC SO-DIMM Slot, support DDR4-3200MHz, up to 16GB | |
Storage | M.2 | 1 * M.2 Key-M Slot (PCIe 2x/SATA, Default PCIe 1x/SATA, Support PCIe 1xNVMe/SATA SSD, Auto Detect, 2280) | |
SATA | 1 * SATA 3.0 7P Port (with 1 * SATA Power Wafer) | ||
I/O INTERFACE | COM | 2 * RS232/RS485 (COM1-2, DB9/M); 4 * RS232 (COM3-6, BOX Header) | |
Ethernet | 2 * Realtek GbE LAN Chip (10/100/1000 Mbps, RJ45) | ||
USB | 4 * USB3.0 (TYPE-A, Rear IO); 5 * USB2.0 (3*Wafer/ 2*Header, Internal) [3] | ||
Video | 1 * HDMI (TYPE-A): max resolution up to 4096*2160@30Hz; 1 * VGA (Internal Wafer, max resolution up to 1920*1080@60Hz) | ||
Audio | Realtek Audio HDA Codec, with 1 * Line Out 3.5mm Jack; 1 * MIC 3.5mm Jack; (Internal 1 * Front Audio Header (Line-Out+ MIC); 2 * Amplifier, 3-W (per channel) into an 8-Ω Loads) | ||
SIM | 1* Built-in SIM card slot connected to M.2 Key-B slot | ||
Power Supply | 1 * DC 12V Power Input Terminal Block (DC24V BOM Optional) 1 * DC 12V Power Input ATX 2*2P Connector | ||
Other | 1* 8-bit GPIO wafter; 1* Remote Switch Terminal (2-Pin, 3.81mm); 1 * CMOS Clear Button | ||
Extended Capabilities | Additional Internal Interface | 1 * M.2 Key-B Slot (PCIE/USB3.0+USB2.0, Default PCIE+USB2.0, Support 5G+4G, 2242/3052) [2] 1 * M.2 Key-E Slot (PCIE+USB2.0, Support WiFi+ BlueTooth, 2230) [3] | |
Environment | Operating Temp. | -10 ~ 70 °C w/ 0.7m/s Airflow | |
Storage Temp. | -40 ~ 85 °C (-40~185 °F) | ||
Relative Humidity | 40 °C @ 95%, Non-Condensing | ||

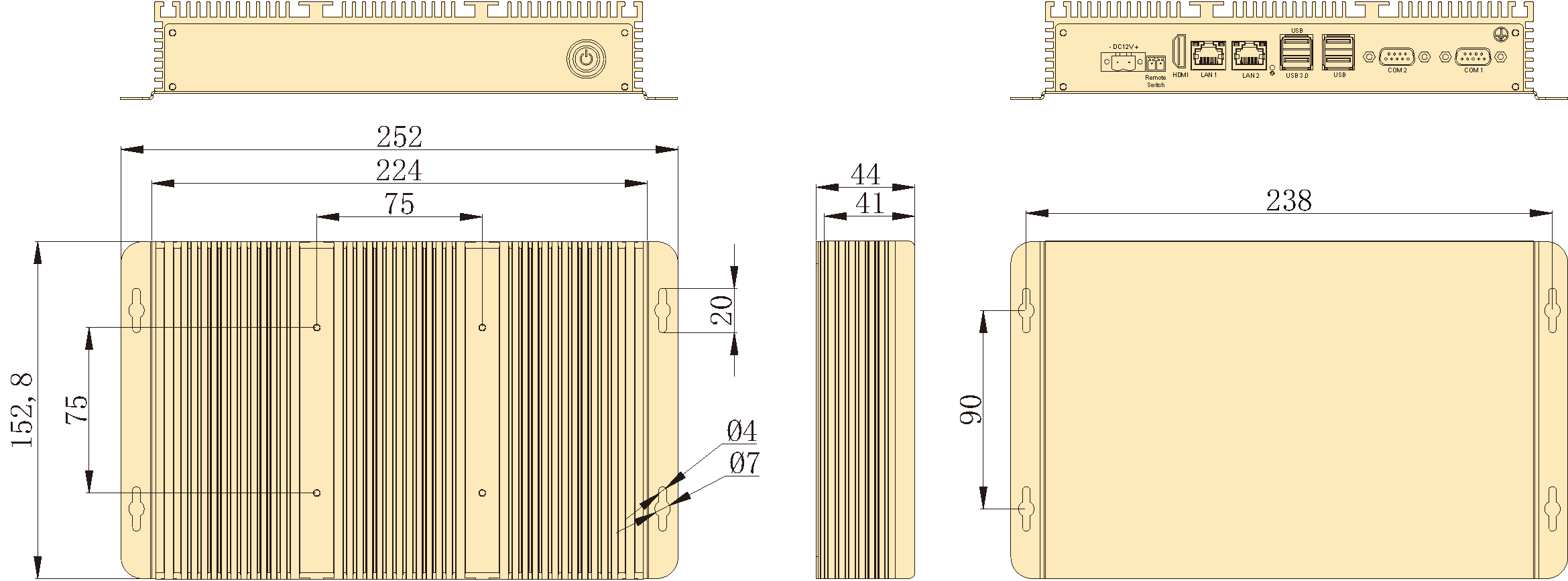

Physical Characteristics | Dimensions | 250* 44* 153 mm (W* H* D) (It has a higher version with 49mm solution) | |
Net Weight | 1.5 KG | ||
Regulation | EMC | CE/FCC Class B, CCC | |
Safety | CE-LVD, RoHS, CCC |
CPU | Code Name | Total Cores | Total Threads | Max Turbo Frequency | Base Frequency | Cache | TDP | Memory Types | Integrated Graphics |
Intel® Processor N95 | Alder Lake-N | 4 | 4 | 3.4 GHz | – | 6 MB | 15W | DDR4 | Intel® UHD Graphics; 16Eus |
Intel® Processor N97 | Alder Lake-N | 4 | 4 | 3.6 GHz | – | 6 MB Intel® Smart Cache | 12W | DDR4 | Intel® UHD Graphics; 24Eus |
Optional Items | Max Qty | Description |
DC9-30V TO DC 12V PWR module | 1 | Phoenix Terminal connector, Power supply voltage conversion module, connected by header |
Isolated RS-232 | 6 | DB9 or Phoenix Terminal connector, connected by header |
Isolated 8-bit GPIO, 9-24V | 1 | Phoenix Terminal connector, connected by header |
4G Module | 1 | Connected by M.2 interface |
WiFi Module without AP mode | 1 | Connected by M.2 interface |
Dual channel CAN-Bus Module | 1 | Connected by M.2 interface |
