IBOX-105-6L2C

The IBOX-105-6L2C system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.
  • Support up to new Intel® Iris® Xe graphics, the platform offers up to 2.95 times faster graphics performance
  • When it works with Tiger Lake processor, the graphics, media, and display engine with up to two VDBOXes that can decode over 40 incoming video streams at 1080p and 30 frames per second.
  • 4-11th Generation Intel Core processors optional with rich expansion slot offers strong scalability
  • Full aluminum alloy anti-interference structure with modular parts design offers stronger system stability
  • Fully enclosed with fanless cooling system and cable-free design for better vibration resistance
  • Multiple mounting options available, DIN-Rail, Wall-Mount, Embedded

The IBOX-105-6L2C Embedded Mini PC with Intel 4th~11th processors gives you more computing power and cost advantages. Dual-channel SO-DIMM DDRM Dual-channel SO-DIMM DDR4 provides up to 64 GB of memory and supports multiple monitors via HDMI and VGA. It is dust, interference and temperature resistant. Rich I/O interfaces including 6LAN, 2COM, 2USB3.0 and 4USB3.0, and 1Internal USB2.0 meet the requirements of most markets. The M.2 interface for Wi-Fi and SIM card slot for expansion allow for easy desktop installation.

Model

IBOX-105-6L2C

Supported OS

Win 7, Win 8, Win 10, Win11, Linux (Ubuntu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT



CPU

Series/ Model

4th~5th Gen. Intel® Core™ Processor

6th~8th Gen. Intel® Core™ Processor Intel® Celeron® 3865U/ 5205U

11th Gen. Intel® Core™ Processor Intel® Celeron® 6305E

TDP

Up to 15W

Up to 15W

Up to 28W



RAM

Type & Qty

1* SO-DIMM Socket

2* SO-DIMM Socket

2* SO-DIMM Socket

Frequency

DDR3L-1333/1600 MHz

DDR4-2133/2400 MHz

DDR4-3200 MHz

Capacity

Up to 8GB

Up to 32GB

Up to 64GB



Storage Device

SATA

1* 2.5″ SATA3.0 Bay on board (6Gb/s)

MSATA

1* mSATA3.0 slot on board (6Gb/s)

















I/O Interface

COM

1* RS232, RJ45 connector (COM1); 1* RS232/485, DB9 connector (COM2, support RS232/485, switchable by jumper)

Ethernet

6* 1.0 GbE LAN, Intel i211, RJ45 only

(Intel® Core™ i3-5020U is working with 2* Intel i210+ 4* Intel i211)

2* 2.5 GbE LAN, Intel i225, RJ45

4* 1.0 GbE LAN, Intel i211, RJ45

USB

2* USB3.0; 4* USB2.0;

1* Internal USB2.0;

4* USB3.0; 2* USB2.0

1* Internal USB 2.0

2* USB3.0; 4* USB2.0;

1* Internal USB2.0;

Video

1* HDMI, Support 4096×2304@24Hz;

1* VGA, Support 1920×1200@60Hz;

1* HDMI, Support 4096×2304@24Hz;

1* VGA, Support 1920×1200@60Hz;

1* HDMI, Support 4096×2304@60Hz;

1* VGA, Support 1920×1200@60Hz;

Audio

1* MIC, 1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662

1* MIC, 1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662

1* MIC, 1* SPK; With 7.1 channels HD Audio Codec Realtek ALC897

SIM

1* External SIM card slot connected to Mini-PCIe

Power Supply

12V DC; 1* DC Jack (5.5* 2.5mm)

Others

1* 8-bit GPIO (4-Inputs/4-Outputs, 0-5V Input Range) and 1* Remote Switch on Terminal Block (12-Pin, 3.81mm). 1* Auto-On Switch;1* PS/2 header

Extended Capabilities

Additional Internal Interface

1* Full Size Mini-PCIe with SIM card slot; (PCIe+USB2.0, PCIe signal is shared with a LAN port)



Environment

Operating Temperature

-10 ~ 55 °C w/ 0.7m/s Airflow

Storage Temperature

-40 ~ 85 °C (-40~185 °F)

Relative Humidity

40 °C @ 95%, Non-Condensing

Physical Characteristics

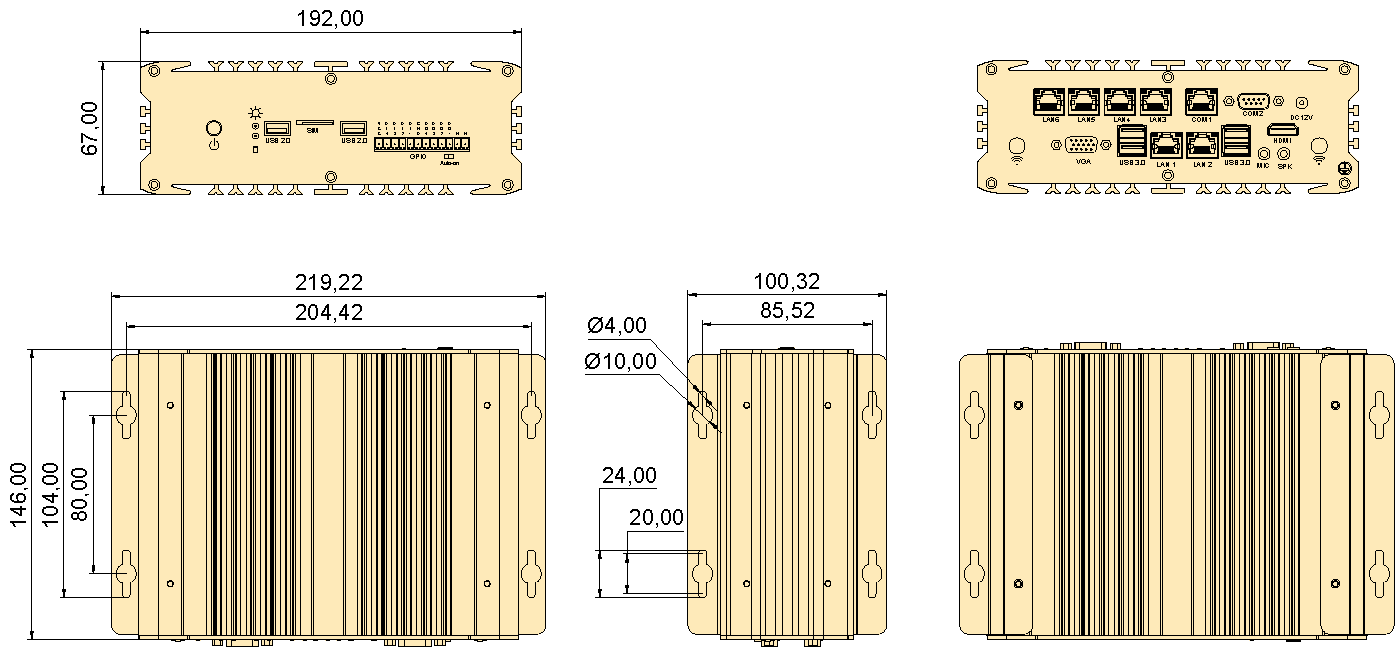

Dimensions

192* 67* 146 mm (W* H* D)

Net Weight

2.05 KG



Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC


CPU Code Name Total Cores Total Threads Max Turbo Frequency Base Frequency Cache TDP Memory Types Integrated Graphics
Intel® Celeron® J1900 Bay Trail 4 4 – 2.00 GHz 2 MB L2 Cache 10W DDR3 Intel® HD Graphics
Intel® Core™ I5-4300U Haswell 2 4 2.90 GHz 1.90 GHz 3 MB Intel® Smart Cache 15W DDR3 Intel® HD Graphics 4400
Intel® Core™ I7-4600U Haswell 2 4 3.30 GHz 2.10 GHz 4 MB Intel® Smart Cache 15W DDR3 Intel® HD Graphics 4400
Intel® Core™ I3-5020U Broadwell 2 4 – 2.20 GHz 3 MB 15W DDR3 Intel® HD Graphics 5500
Intel® Celeron® 3865U Kaby Lake 2 2 – 1.80 GHz 2 MB Intel® Smart Cache 15W DDR4 Intel® HD Graphics 610
Intel® Celeron® 5205U Comet Lake 2 2 – 1.90 GHz 2 MB 15W DDR4 Intel UHD Graphics
Intel® Core™ I5-6360U Skylake 2 4 3.10 GHz 2.00 GHz 4 MB Intel® Smart Cache 15W DDR4 Intel® Iris® Graphics 540
Intel® Core™ I7-6650U Skylake 2 4 3.40 GHz 2.20 GHz 4 MB Intel® Smart Cache 15W DDR4 Intel® Iris® Graphics 540
Intel® Core™ I5-7200U Kaby Lake 2 4 3.10 GHz 2.50 GHz 3 MB Intel® Smart Cache 15W DDR4 Intel® HD Graphics 620
Intel® Core™ I5-7360U Kaby Lake 2 4 3.60 GHz 2.30 GHz 4 MB 15W DDR4 Intel® Iris Plus Graphics 640
Intel® Core™ I7-7600U Kaby Lake 2 4 3.90 GHz 2.80 GHz 4 MB Intel® Smart Cache 15W DDR4 Intel® HD Graphics 620
Intel® Core™ I3-8145U Whiskey Lake 2 4 3.90 GHz 2.10 GHz 4 MB Intel® Smart Cache 15W DDR4 Intel® UHD Graphics 620
Intel® Core™ I5-8265U Whiskey Lake 4 8 3.90 GHz 1.60 GHz 6 MB Intel® Smart Cache 15W DDR4 Intel® UHD Graphics 620
Intel® Core™ I7-8565U Whiskey Lake 4 8 4.60 GHz 1.80 GHz 8 MB Intel® Smart Cache 15W DDR4 Intel® UHD Graphics 620
Intel® Celeron® 6305E Tiger Lake 2 2 – 1.80 GHz 4 MB Intel® Smart Cache 15W DDR4 Intel UHD Graphics
Intel® Core™ I5-1135G7 Tiger Lake 4 8 4.20 GHz 2.40 GHz 8 MB Intel® Smart Cache 12-28W DDR4 Intel® Iris® Xe Graphics; 80Eus
Intel® Core™ I7-1195G7 Tiger Lake 4 8 5.00 GHz 2.90 GHz 12 MB Intel® Smart Cache 12-28W DDR4 Intel® Iris® Xe Graphics eligible; 96Eus

Optional Items

Max Qty

Description

AI Acceleration Card

1

13 TOPS, Connected by Mini-PCIe interface

Isolated 8-bit GPIO, 9-24V

1

Phoenix Terminal connector, connected by non-standard M.2 interface

Isolated 8-bit GPIO with current loading, 9-26V

1

Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface

Isolated 15-bit GPIO, 0-5V

1

Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface

Isolated 15-bit GPIO with 7-in & 8-out, 12-24V

1

Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface

4G Module

1

Connected by Mini-PCIe interface

WiFi Module without AP mode

1

Connected by Mini-PCIe interface

WiFi Module with AP mode

1

Connected by Mini-PCIe interface

Dual channel CAN-Bus Module

1

Connected by Mini-PCIe interface or M.2 Interface

Single GbE PoE LAN Module

1

Connected by Mini-PCIe interface
