IBOX-602GT-2P

IBOX-602GT-2P system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.
  • Integrated up to eight Performance-cores, that enhance IoT workload consolidation, and up to eight Efficient-cores, that enhance background task
    management and multitasking;
  • Up to 32 graphics execution units (EUs) based on Intel® UHD Graphics 770 driven by Intel® Xe Architecture, allows for eye-catching visuals;
  • Support up to 4* easily Swappable 2.5 inch HDD Design with RAID 0/1/5/10;
  • The graphics, media, and display engine with up to two VDBOXes that can decode over 40 incoming video streams at 1080p and 30 frames per second;
  • Modular parts design with Active and passive heat dissipation design, come with aluminum alloy cooling enclosure, anti-vibration and anti-interference;
  • Support NVIDIA® GeForce RTX™ 20/30/40 Series GPU with a riser kit, up to RTX 4060;

IBOX-602GT-2P Adopts 12th to 14th generation Intel® processor 2*SO-DIMM socket memory, supports up to 64GB, 1×HDMI (optional DP), 1×VGA, supports dual screen synchronous display 4×USB 3.2, 4* USB 3.0, 5×COM, 3×LAN Network port, 1 x SATA3.0, 1 x mSTATA, 1 x M.2, External SIM card slot connected to Mini-PCIe. Supports Wake on Network, PCIe3.0 x16 Slot, diskless boot, and power on by incoming call. Suitable for retail, self service and industrial all in one machines.



Model

IBOX-602-GT-2P

Supported OS

Win 10, Win 11, Linux (Ubuntu, Debian, Kali, CentOS, etc.); Win 10 IoT

Chipset

Intel® H770 Chipset, TDP 6W



CPU

Socket

Intel® Desktop Processors Socket LGA1700

Series

Gen.12/13/14 Intel® Core™ i3 processor (base TDP up to 65W)

Gen.12/13/14 Intel® Core™ i9/ i7/ i5 processor (base TDP up to 35W)

Graphic

Intel® UHD Graphics 730, 24 Execution Units

Intel® HD Graphics 770, 32 Execution Units

RAM

Type&Qty

2* Dual-CH DDR4 3200 MHz SO-DIMM Socket, Capacity up to 64GB for single slot





Storage Device

SATA

1* 2.5″ SATA3.0 Bay on daughterboard (6Gb/s);

4* SATA3.0 connectors (6Gb/s), Support RAID 0/1/5/10 (SATA3&4 are colay with PCIex2 of NGFF1)

MSATA

1* mSATA3.0 slot on board (6Gb/s)

M.2

1* M.2 2280 M-key slot (NGFF3) , support PCIex4 Gen.3 NVMe SSD (From CPU);

1* M.2 2280 M-key slot (NGFF1) , support PCIex2 Gen.3 NVMe/ SATA3.0 SSD (From PCH, the PCIex2 signale is colay with SATA 3&4)













I/O Interface

COM

4* Isolated DB9 COM Ports with ESD/EFT/Surge protection (COM1-4, support RS232/485, switchable by jumper); 1* RS232 with DB9 connector (COM5); 1* RS232 header (COM6)

Ethernet

2* Intel® i210AT GbE LAN, RJ45 connector; 1* Intel® i219LM GbE LAN, RJ45 connector

USB

4* USB3.2 Gen 2×1 (10Gb/s);

4* USB3.0 (5Gb/s); (USB3.0-1 is colay with M.2 B Key slot, USB3.0-2 is colay with Mini-PCIe slot on motherboard); 2* USB2.0, 1* Internal USB2.0 (480Mb/s, on daughterboard)

Video

1* HDMI, Support 4096×2304 @24Hz +1* DP, Support 4096*2160 @60Hz; (Optional 2* DP, Support 4096 x 2304@60Hz); Optional with one more HDMI port, expanded by TP-IPC daughter card, supports 3 independent displays

Audio

1* MIC, 1* SPK; With 7.1+2 channels HD (High Definition) Audio Codec Realtek ALC897

SIM

2* External SIM card slot, SIM 1 is connected to M.2 B-key slot, SIM2 is connected to Mini-PCIe slot on daughterboard; (Available with one more internal SIM card slot when using a LTE module with SIM card slot)

Power Supply

9-36 VDC; 1* Terminal Block (4-Pin, 5.08mm)

Other

1* 8-bit GPIO, Terminal Block (12-Pin, 3.81mm), 4-Inputs/4-Outputs, 0-5V Input Range; 1* Terminal Block (4-Pin, 3.81mm Pitch) with Remote Switch and Power Indicator;

1* PS/2 for keyboard/ mouse; 1* Auto-On Jumper; 1* TPM header (2*6-pin)



Extended Capabilities

Additional Internal Interface

1* PCIe x4+1* PCIe x16 or 1* PCI+1* PCIe x4 or 2* PCI or 1* PCIe x1+1* PCIe x4 or 1* PCI+1* PCIe x16; (Only PCIex16 is Gen.4) 1* M.2 3042/3052 B-key Slot with SIM card slot (USB3.0, USB signal is colay with USB1 on motherboard);

1* Full Size Mini-PCIe Slot (PCIe+USB2.0, on motherboard, without SIM card slot, USB signal iss colay with USB2 on motherboard); 1* Full Size Mini-PCIe Slot with SIM card slot (PCIe+USB2.0, on daughterboard);

1* M.2 2230 E-key Slot (PCIe+USB2.0, support CNVi, WiFi+BT)



Environment

Operating Temp.

-10 ~ 55 °C w/ 0.7m/s Airflow

Storage Temp.

-40 ~ 85 °C (-40~185 °F)

Relative Humidity

40 °C @ 95%, Non-Condensing

Physical

Characteristics

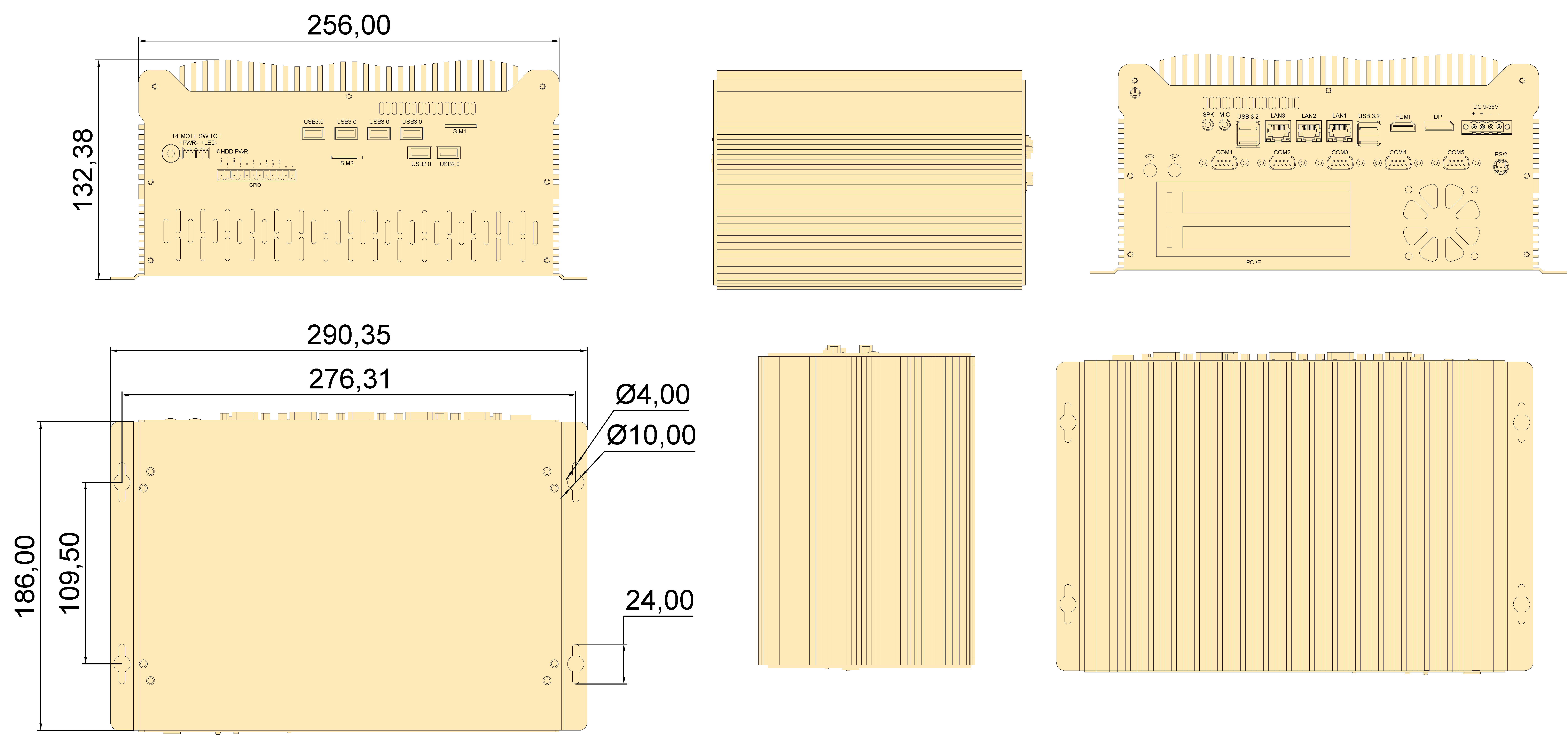

Dimensions

290.35* 132.38* 186 mm (W* H* D)

Net Weight

4.55 KG

Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC



CPU

Code Name

Total Cores

Total Threads

Max Turbo Frequency

Base Frequency

Cache

TDP

Memory Types

Integrated Graphics

Intel® Core™ I3-12100T

Alder Lake

4

8

4.10 GHz

2.20 GHz

12 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 730, 24EUs

Intel® Core™ I5-12500T

Alder Lake

6

12

4.40 GHz

2.00 GHz

18 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I7-12700T

Alder Lake

12

20

4.70 GHz

1.40 GHz

25 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I9-12900T

Alder Lake

16

24

4.90 GHz

1.40 GHz

30 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I3-12100

Alder Lake

4

8

4.30 GHz

3.30 GHz

12 MB Intel® Smart Cache

65 W

DDR4

Intel® HD Graphics 730, 24EUs

Intel® Core™ I3-13100T

Raptor Lake

4

8

4.10 GHz

2.20 GHz

12 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 730, 24EUs

Intel® Core™ I5-13500T

Raptor Lake

14

20

4.40 GHz

2.00 GHz

24 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I7-13700T

Raptor Lake

16

24

4.70 GHz

1.40 GHz

30 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I9-13900T

Raptor Lake

24

32

4.90 GHz

1.40 GHz

36 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I3-13100

Raptor Lake

4

8

4.30 GHz

3.30 GHz

12 MB Intel® Smart Cache

65 W

DDR4

Intel® HD Graphics 730, 24EUs

Intel® Core™ I3-14100T

Raptor Lake

4

8

4.40 GHz

2.70 GHz

12 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 730, 24EUs

Intel® Core™ I5-14500T

Raptor Lake

14

20

4.80 GHz

1.70 GHz

24 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I7-14700T

Raptor Lake

20

28

5.20 GHz

1.30 GHz

33 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I9-14900T

Raptor Lake

24

32

5.50 GHz

1.10 GHz

36 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I3-14100

Raptor Lake

4

8

4.70 GHz

3.50 GHz

12 MB Intel® Smart Cache

65 W

DDR4

Intel® HD Graphics 730, 24EUs



Optional Items

Max Qty

Description

Isolated RS-232

1

DB9 or Phoenix Terminal connector, connected by header

Non-Isolated RS-232

1

DB9 or Phoenix Terminal connector, connected by header

Non-Isolated RS-422

1

DB9 or Phoenix Terminal connector, connected by header with a transform module

Non-Isolated RS-485

1

DB9 or Phoenix Terminal connector, connected by header with a transform module

Isolated 8-bit GPIO, 9-24V

1

Phoenix Terminal connector, connected by header

Isolated 8-bit GPIO with current loading, 9-26V

1

Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface

4G Module

1

Connected by Mini-PCIe interface

WiFi Module without AP mode

1

Connected by Mini-PCIe interface, M.2 interface or internal USB interface

WiFi Module with AP mode

1

Connected by Mini-PCIe interface

Dual channel CAN-Bus Module

2

Connected by Mini-PCIe or M.2 interface

Dual GbE PoE LAN Module

1

Connected by Mini-PCIe Interface
