IBOX-603-2L4C-1P Embedded Mini PC is equipped with Intel 10th, 11th generation processors powered by Intel® H470, Q470E with optional Chipset, which provides you with more computing power and cost advantages. Multi-SO-DIMM DDR4 provides 64GB of RAM and supports Triple Displays via HDMI and DP, support PCIex4 Gen.. It is dust, interference and heat resistant. Rich I/O interfaces include 2LAN, 4COM,, 4 USB3.2, 2 USB3.0 to meet the needs of most markets. Easy desktop installation. Optional Wi-Fi module, M.2 interface and SIM card slot for expansion. The high power consumption of this series also brings superb capacity and better performance at the same time.
Model | IBOX-603-2L4C-1P | |||
Supported OS | Win 7, Win 8, Win 10, Win 11, Linux (Ubuntu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT | |||
Chipset | Model | Intel® H470 Chipset | Intel® Q470E Chipset | |
vPRO Tech | Non-supported | Non-supported | Supported | |
CPU | Socket | Intel® Desktop Processors Socket LGA1200 | ||
Series | 10th/11th Gen. Intel® Core™ i9 / i7/ i5 /i3 | 10th Gen. Intel® Core™ i3 | 10th/11th Gen. Intel® Core™ i9 / i7/ i5 | |
TDP | Up to 65W | Up to 65W | Up to 65W | |
Graphic | Intel® UHD Graphics 630 for 10th Gen. processor; Intel® UHD Graphics 750 for 11th Gen. processor, 32Eus | |||
RAM |
SO-DIMM | 2* Dual-CH DDR4 2933/ 2666 MHz SO-DIMM Socket, Capacity up to 64GB; (Core® i9/ i7 CPUs support DDR4 up to 2933 MHz; Core® i5/ i3 CPUs support DDR4 up to 2666 MHz) | ||
Storage Device | SATA | 1* SATA3.0 connector (6Gb/s) | ||
M.2 | 1* M.2 (NGFF) 2280 M-key slot, support PCIex4 Gen.3 NVMe/ SATA3.0 SSD | |||
I/O Interface | COM | 4* COM headers (COM1/COM2, support RS232/422/485; COM3/COM4,support RS232) | ||
Ethernet | 1* Intel i225LM 2.5GbE, 1* Intel i219LM GbE LAN | 1* Intel i225LM 2.5GbE, 1* Intel i219V GbE | ||
USB | 4 * USB3.2 (Gen.1, 5Gb/s) ; 1* 9-Pin USB 2.0 header for 2* USB 2.0 expansion ports (480Mb/s) | 4 * USB3.2 (Gen.2, 10Gb/s) ; 1* 19-Pin USB 3.2 (Gen.1) header for 2* USB 3.2 (Gen.1, 5Gb/s); 2* 9-Pin USB 2.0 header for 4* USB 2.0 expansion ports (480Mb/s) | ||
Video | 2 * HDMI 1.4 (Max Resolution: 4096×2160 @60Hz); 1* DP (Max Resolution: 4096×2304 @60Hz); Support Triple Displays | |||
Audio | 1* Mic-in, 1* Line-out; With 5.1 channels HD Audio Codec Realtek ALC662; 1* Audio Header | |||
SIM | 1* Internal SIM card slot connected to M.2 B-key slot | |||
Power Supply | 12V-28V DC; 1* DC Jack (5.5* 2.5mm) | |||
Other | 1* 8-bit GPIO header with 4 inputs and 4 outputs, Input voltage range: 0-5V; | |||
Extended Capabilities |
Additional Internal Interface | 1* Half Size PCIex16 slot (Suggest the PCIe card less than 25W Power) 1* M.2 2230 E-key slot (PCIe+USB2.0, support CNVi) 1* M.2 3042/3052 B-key slot (USB3.0/PCIe x1) | ||
Environment | Operating Temperature | -10 ~ 60 °C w/ 0.7m/s Airflow | ||
Storage Temperature | -40 ~ 85 °C (-40~185 °F) | |||
Relative Humidity | 40 °C @ 10%~95%, Non-Condensing | |||

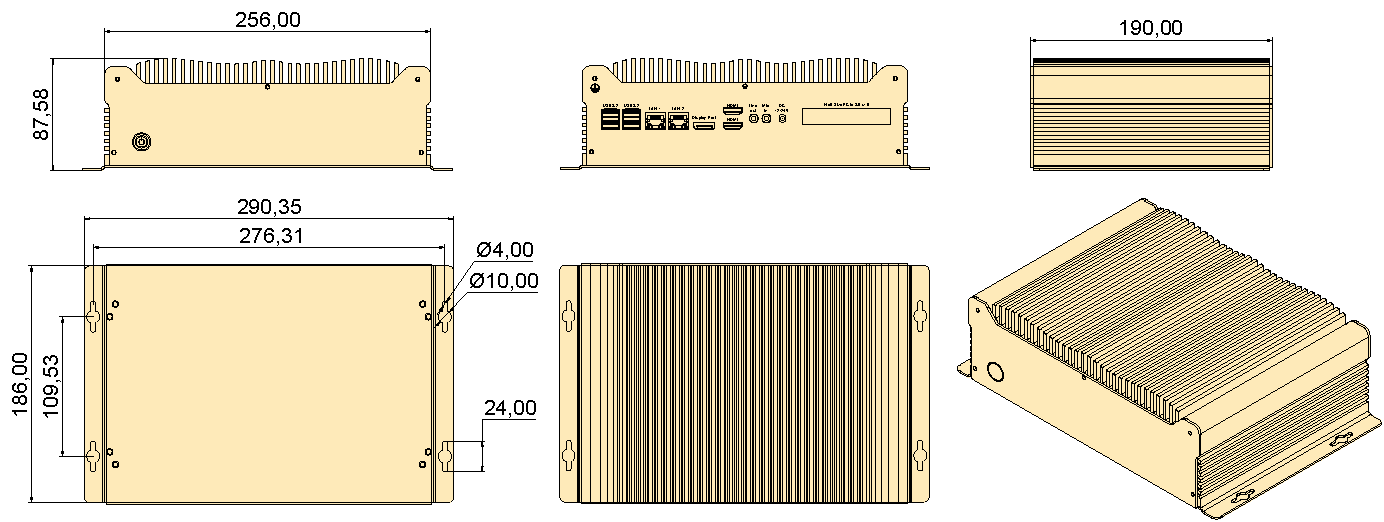

Physical Characteristics | Dimensions | 290.3* 87.58* 186 mm (W* H* D) | ||
Net Weight | 3.9 KG | |||
Regulation | EMC | CE/FCC Class B, CCC | ||
Safety | CE-LVD, RoHS, CCC | |||
CPU | Code Name | Total Cores | Total Threads | Max Turbo Frequency | Base Frequency | Cache | TDP | Memory Types | Integrated Graphics |
Intel® Core™ I3-10100T | Comet Lake | 4 | 8 | 3.80 GHz | 3.00 GHz | 6 MB Intel® Smart Cache | 35 W | DDR4 | Intel® UHD Graphics 630 |
Intel® Core™ I3-10100 | Comet Lake | 4 | 8 | 4.30 GHz | 3.60 GHz | 6 MB Intel® Smart Cache | 65 W | DDR4 | Intel® UHD Graphics 630 |
Intel® Core™ I5-10500T | Comet Lake | 6 | 12 | 3.80 GHz | 2.30 GHz | 12 MB Intel® Smart Cache | 35 W | DDR4 | Intel® UHD Graphics 630 |
Intel® Core™ I5-10500 | Comet Lake | 6 | 12 | 4.50 GHz | 3.10 GHz | 12 MB Intel® Smart Cache | 65 W | DDR4 | Intel® UHD Graphics 630 |
Intel® Core™ I5-11500T | Rocket Lake | 6 | 12 | 3.90 GHz | 1.50 GHz | 12 MB Intel® Smart Cache | 35 W | DDR4 | Intel® UHD Graphics 750, 32Eus |
Intel® Core™ I5-11500 | Rocket Lake | 6 | 12 | 4.60 GHz | 2.70 GHz | 12 MB Intel® Smart Cache | 65 W | DDR4 | Intel® UHD Graphics 750, 32Eus |
Intel® Core™ I7-10700T | Comet Lake | 8 | 16 | 4.50 GHz | 2.00 GHz | 16 MB Intel® Smart Cache | 35 W | DDR4 | Intel® UHD Graphics 630 |
Intel® Core™ I7-10700 | Comet Lake | 8 | 16 | 4.80 GHz | 2.90 GHz | 16 MB Intel® Smart Cache | 65 W | DDR4 | Intel® UHD Graphics 630 |
Intel® Core™ I7-11700T | Rocket Lake | 8 | 16 | 4.60 GHz | 1.40 GHz | 16 MB Intel® Smart Cache | 35 W | DDR4 | Intel® UHD Graphics 750, 32Eus |
Intel® Core™ I7-11700 | Rocket Lake | 8 | 16 | 4.90 GHz | 2.50 GHz | 16 MB Intel® Smart Cache | 65 W | DDR4 | Intel® UHD Graphics 750, 32Eus |
Optional Items | Max Qty | Description |
Isolated RS-232 | 1 | DB9 or Phoenix Terminal connector, connected by header |
Non-Isolated RS-232 | 1 | DB9 or Phoenix Terminal connector, connected by header |
Non-Isolated RS-422 | 1 | DB9 or Phoenix Terminal connector, connected by header with a transform module |
Non-Isolated RS-485 | 1 | DB9 or Phoenix Terminal connector, connected by header with a transform module |
Isolated 8-bit GPIO, 9-24V | 1 | Phoenix Terminal connector, connected by header |
Isolated 8-bit GPIO with current loading, 9-26V | 1 | Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface |
Isolated 15-bit GPIO, 0-5V | 1 | Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface |
Isolated 15-bit GPIO with 7-in & 8-out, 12-24V | 1 | Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface |
4G Module | 1 | Connected by Mini-PCIe interface |
WiFi Module without AP mode | 1 | Connected by Mini-PCIe interface, M.2 interface or internal USB interface |
WiFi Module with AP mode | 1 | Connected by Mini-PCIe interface |
Dual channel CAN-Bus Module | 2 | Connected by Mini-PCIe or M.2 interface |
Dual/Quad channel CAN-Bus Module | 1 | Connected by PCIe Interface |
Dual GbE PoE LAN Module | 1 | Connected by Mini-PCIe Interface |
Quad GbE PoE LAN Module | 2 | Connected by PCIe Interface |
