IDP-0700W series monitors include multiple types of capacitive resistive screen CT, RT options, all aluminium alloy casing, well-built, clearer picture, more point-and-click features. 7″ to 23″ options, perfect ratio, ideal media playback quality via 1* HDMI, 1* DVI-I, 1* VGA, 1* Audio In, Touchscreen lockable USB and 9-32V DC power supply. Superior quality, light weight and slim profile.
Model | IDP-0700W | IDP-0700W-CT | IDP-0700W-RT |
Display Information | Size & Ratio | 7″, 16:10 | |
Resolution | 1280 X 800 | ||
Brightness | 400 (Typ.) | ||
Viewing Angle | 88/88/88/88 (Typ.)(CR>=10) | ||
Contrast Ratio | 800 : 1 (Typ.) ( Transmission ) | ||
Display Colors | 16.7m 50% (CIE1931) | ||
Display Area | 149.76 × 93.60 mm | ||
Response Time | 35 (Typ.)(Tr+Td) ms | ||
Frequency | 60Hz | ||
Pixel pitch | 0.117 x 0.117 mm | ||
Touchscreen | Touchscreen Type | 5-Wire Resistive Touchscreen | Projected Capacitive Touchscreen |
Touchscreen Method | Single point | Ten point | |
Surface | 3H | 6H | |
Durability | 1 million touches | – | |
Transparency | 75%±8% | 85± 3% | |
Environment | Operating Temperature | -10 ~ 50 °C w/ 0.7m/s Airflow | -20 ~ 70 °C w/ 0.7m/s Airflow |
Storage Temperature | -20 ~ 50 °C (-4~122 °F) | -20 ~ 70 °C (-4~158 °F) | |
Relative Humidity | 40 °C @ 95%, Non-Condensing | ||
I/O INTERFACE | Vide & Audio | 1* HDMI, 1* DVI-I, 1* VGA, 1* Audio In, 1* Audio Out | |
Touchscreen Interface | 1* Touchscreen Lockable USB | ||
Power Supply | 9-32V DC; 1* DC Threaded Jack (5.5* 2.5mm) | ||

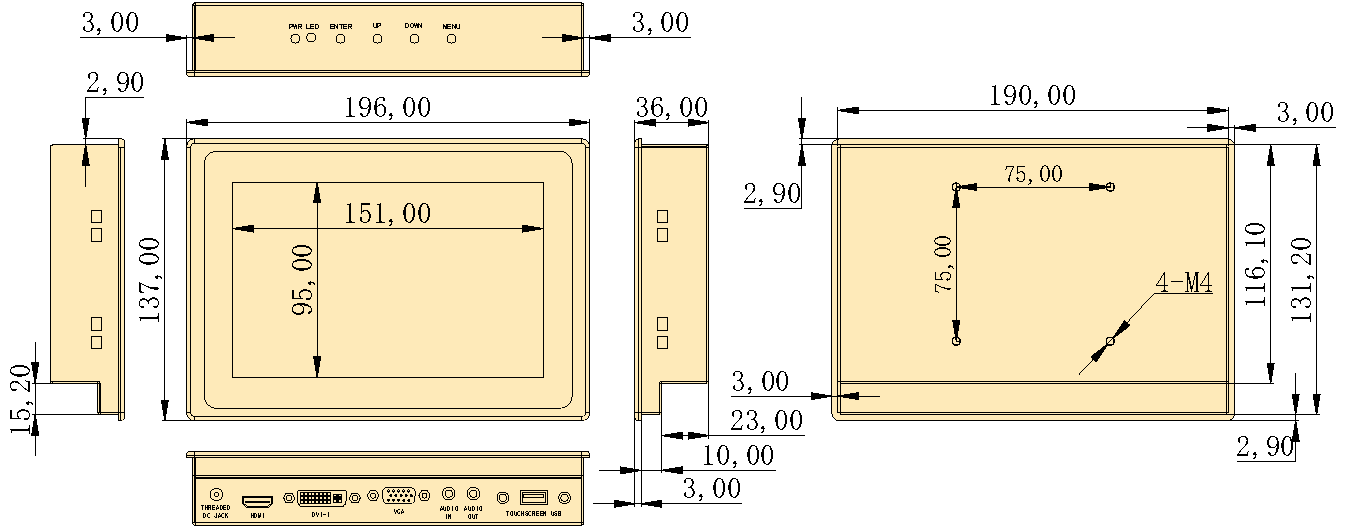

Physical Characteristics | Dimensions | 196*137*36mm (W* H* D) | |
Net Weight | 0.8KG | ||
Regulation | EMC | CE/FCC Class B, CCC | |
Safety | CE-LVD, RoHS, CCC | ||
Part No. | Brightness(cd/m2) | Touch Screen | Video & Audio I/O | Touchscreen Connector | Power Connector | Power Supply |
IDP-0700W-CT | 400 | Projected Capacitive | VGA, DVI, HDMI, Audio In, Audio Out | USB | DC Threaded Jack | 9-32V DC |
IDP-0700W-RT | 400 | 5-Wire Resistive | VGA, DVI, HDMI, Audio In, Audio Out | USB | DC Threaded Jack | 9-32V DC |
| Optional Items | Qty | Description |
| M Cable 9P/9P (Touchscreen RS-232 cable) | – | 2/3/5/10/15m |
| Lockable M cable USB-A(M)/USB-A(M) | – | 2/3m |
| Rotatable wall-mounted VESA bracket | – | 75*75mm |
| Advanced touch-module | – | Support touch function even when there is water on the panel |
| VGA cable | – | 2/3/5/10/15m |
| HDMI cable | – | 2/3/5/10/15m |
| DVI cable, 1.5m | – | 2/3/5/10/15m |
