IDP-0970S

The IDP-0970S system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.
  • The front panel supports IP65 waterproof and dustproof rating, which is suitable for various harsh environments.
  • Has a wide range of operating temperatures to support normal operation under extreme temperature conditions.
  • Offers a variety of screen types to meet different needs, including 5-wire resistive touch screen and projected capacitive touch screen.
  • Standard integrated frame design supports a variety of mounting options, including rear and VESA mounting for easy installation and application flexibility.
  • Equipped with a variety of video interfaces, including HDMI, VGA and DVI-I, providing a wide range of connectivity options.
  • Ultra-slim body design is compact and aesthetically pleasing.
  • Supports multiple operating systems, including Windows and Linux distributions, as well as professional platforms.
  • Offers a wide range of connectivity options such as USB, Ethernet, HDMI and SIM card slots, with internal interfaces for seamless integration of features such as AI acceleration, 4G/5G connectivity and WiFi/BT modules.

IDP-0970S series monitors include multiple types of capacitive resistive screen CT, RT options, all aluminium alloy casing, well-built, clearer picture, more point-and-click features. 7″ to 23″ options, perfect ratio, ideal media playback quality via 1* HDMI, 1* DVI-I, 1* VGA, 1* Audio In, Touchscreen lockable USB and 9-32V DC power supply. Superior quality, light weight and slim profile.

Model

IDP-0970S

IDP-0970S-CT

IDP-0970S-NT











Display Information

Size & Ratio

9.7″, 4:3

Resolution

1024*768

Brightness

350 cd/m2 (Typ.)

Viewing Angle

70/70/60/70 (Typ.)(CR>=10)

Contrast Ratio

500 : 1 (Typ.) (Transmission)

Display Colors

262k 50% (CIE1931)

Display Area

196.608*147.456(mm)

Response Time

20/25 (Typ./max.)(Tr+Td) ms

Frequency

60Hz

Pixel pitch

0.192(H)*0.192 (V)







Touchscreen

Touchscreen Type

5-Wire Resistive Touchscreen

Projected Capacitive Touchscreen

Touchscreen Method

Single point

Ten point

Surface

3H

6H

Durability

1 million touches

Transparency

75%±8%

85± 3%



Environment

Operating Temperature

-10 ~ 50 °C w/ 0.7m/s Airflow

-20 ~ 70 °C w/ 0.7m/s Airflow

Storage Temperature

-20 ~ 50 °C (-4~122 °F)

-20 ~ 70 °C (-4~158 °F)

Relative Humidity

40 °C @ 95%, Non-Condensing



I/O INTERFACE

Vide & Audio

1* HDMI, 1* DVI-I, 1* VGA, 1* Audio In, 1* Audio Out

Touchscreen Interface

1* Touchscreen Lockable USB

Power Supply

9-32V DC; 1* DC Threaded Jack (5.5* 2.5mm)

Physical Characteristics

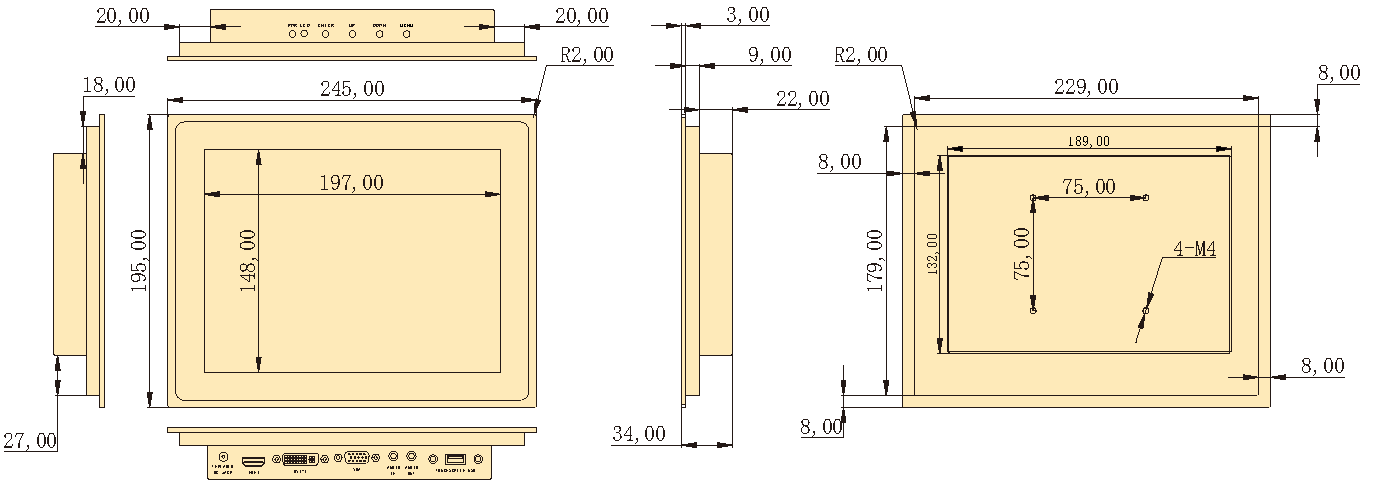

Dimensions

245*195*34mm (W* H* D)

Net Weight

1KG



Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC

Part No.

Brightness(cd/m2)

Touch Screen

Video & Audio I/O

Touchscreen Connector

Power Connector

Power Supply

IDP-0970S-CT

350

Projected Capacitive

VGA, DVI, HDMI, Audio In, Audio Out

USB

DC Threaded Jack

9-32V DC

IDP-0970S-RT

350

5-Wire Resistive

VGA, DVI, HDMI, Audio In, Audio Out

USB

DC Threaded Jack

9-32V DC



Optional Items Qty Description
M Cable 9P/9P (Touchscreen RS-232 cable) 2/3/5/10/15m
Lockable M cable USB-A(M)/USB-A(M) 2/3m
Rotatable wall-mounted VESA bracket 75*75mm
Advanced touch-module Support touch function even when there is water on the panel
VGA cable 2/3/5/10/15m
HDMI cable 2/3/5/10/15m
DVI cable, 1.5m 2/3/5/10/15m
