IDP-1200S series monitors include multiple types of capacitive resistive screen CT, RT options, all aluminium alloy casing, well-built, clearer picture, more point-and-click features. 7″ to 23″ options, perfect ratio, ideal media playback quality via 1* HDMI, 1* DVI-I, 1* VGA, 1* Audio In, Touchscreen lockable USB and 9-32V DC power supply. Superior quality, light weight and slim profile.
Model | IDP-1200S | IDP-1200S-RT | IDP-1200S-CT | IDP-1200S-NT |
Display Information | Size & Ratio | 12″, 4:3 | ||
Resolution | 1024*768 | |||
Brightness | 500 cd/m2 (Typ.) | |||
Viewing Angle | 88/88/88/88 (Typ.)(CR>=10) | |||
Contrast Ratio | 1200:1 (Typ.) ( Transmission ) | |||
Display Colors | 16.7m 72% (CIE1931) | |||
Display Area | 245.76 X 184.32(mm) | |||
Response Time | 25 (Typ.)(Tr+Td) ms | |||
Frequency | 60Hz | |||
Pixel pitch | 80(H) X 240 (V) (mm) | |||
Touchscreen | Touchscreen Type | 5-Wire Resistive Touchscreen | Projected Capacitive Touchscreen | Non-Touchscreen |
Touchscreen Method | Single point | Ten point | – | |
Surface | 3H | 6H | – | |
Durability | 1 million touches | – | – | |
Transparency | 75%±8% | 85± 3% | – | |
Environment | Operating Temperature | -10 ~ 50 °C w/ 0.7m/s Airflow | -20 ~ 70 °C w/ 0.7m/s Airflow | -20 ~ 70 °C w/ 0.7m/s Airflow |
Storage Temperature | -20 ~ 50 °C (-4~122 °F) | -20 ~ 70 °C (-4~158 °F) | -30 ~ 80 °C (-22~176 °F) | |
Relative Humidity | 40 °C @ 95%, Non-Condensing | |||
I/O INTERFACE | Vide & Audio | 1* HDMI, 1* DVI-I, 1* VGA, 1* Audio In, 1* Audio Out | ||
Touchscreen Interface | 1* Touchscreen Lockable USB; Optional with Touchscreen RS-232 DB9 serial port | |||
Power Supply | 9-32V DC; 1* DC Threaded Jack (5.5* 2.5mm) | |||

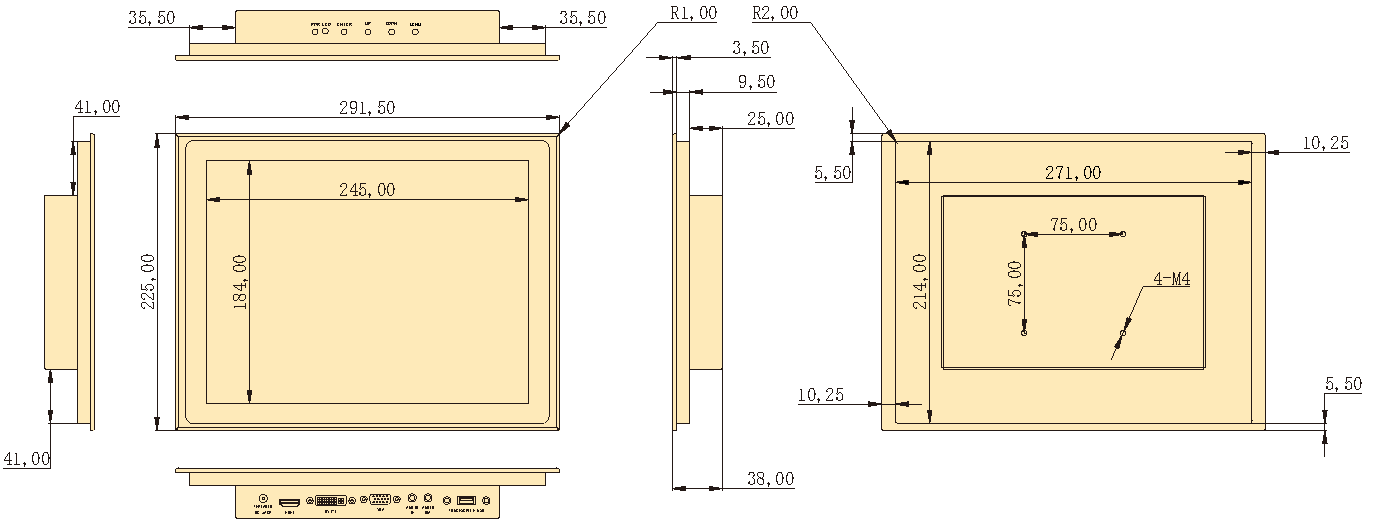

Physical Characteristics | Dimensions | 291.5*225*38mm (W* H* D) | ||
Net Weight | 1.6KG | |||
Regulation | EMC | CE/FCC Class B, CCC | ||
Safety | CE-LVD, RoHS, CCC | |||
Part No. | Brightness(cd/m2) | Touch Screen | Video & Audio I/O | Touchscreen Connector | Power Connector | Power Supply |
IDP-1200S-NT | 500 | NA | VGA, DVI, HDMI, Audio In, Audio Out | NA | DC Threaded Jack | 9-32V DC |
IDP-1200S-CT | 500 | Projected Capacitive | VGA, DVI, HDMI, Audio In, Audio Out | USB or RS232 | DC Threaded Jack | 9-32V DC |
IDP-1200S-RT | 500 | 5-Wire Resistive | VGA, DVI, HDMI, Audio In, Audio Out | USB or RS232 | DC Threaded Jack | 9-32V DC |
Optional Items | Qty | Description |
M Cable 9P/9P (Touchscreen RS-232 cable) | – | 2/3/5/10/15m |
Lockable M cable USB-A(M)/USB-A(M) | – | 2/3m |
Rotatable wall-mounted VESA bracket | – | 75*75mm |
Touchscreen RS-232 module | – | Touch signal transmission distance up to 30m |
Advanced touch-module | – | Support touch function even when there is water on the panel |
VGA cable | – | 2/3/5/10/15m |
HDMI cable | – | 2/3/5/10/15m |
DVI cable, 1.5m | – | 2/3/5/10/15m |
