IDP-1950W series monitors include multiple types of capacitive resistive screen CT, RT options, all aluminium alloy casing, well-built, clearer picture, more point-and-click features. 7″ to 23″ options, perfect ratio, ideal media playback quality via 1* HDMI, 1* DVI-I, 1* VGA, 1* Audio In, Touchscreen lockable USB and 9-32V DC power supply. Superior quality, light weight and slim profile.
Model | IDP-1950W | IDP-1950W-CT | IDP-1950W-NT |
Display Information | Size & Ratio | 19.5″, 16:9 | |
Resolution | 1920*1080 | ||
Brightness | 250 (Typ.) | ||
Viewing Angle | 89/89/89/89 (Typ.)(CR>=10) | ||
Contrast Ratio | 3000 : 1 (Typ.) ( Transmission ) | ||
Display Colors | 16.7m 72% (CIE1931) | ||
Display Area | 434.88*238.68(mm) | ||
Response Time | 25 (Typ.)(Tr+Td) ms | ||
Frequency | 60Hz | ||
Pixel pitch | 0.2265 (H)*0.221 (V) | ||
Touchscreen | Touchscreen Type | Projected Capacitive Touchscreen | Non-Touchscreen |
Touchscreen Method | Ten point | – | |
Surface | 6H | Matte (Haze 25%),Hard coating (3H) | |
Durability | – | – | |
Transparency | 85± 3% | – | |
Environment | Operating Temperature | -0 ~ 50 °C w/ 0.7m/s Airflow | -0 ~ 50 °C w/ 0.7m/s Airflow |
Storage Temperature | -20 ~ 60 °C (-4~140 °F) | -20 ~ 60 °C (-4~140 °F) | |
Relative Humidity | 40 °C @ 95%, Non-Condensing | ||
I/O INTERFACE | Vide & Audio | 1* HDMI, 1* DVI-I, 1* VGA, 1* Audio In, 1* Audio Out | |
Touchscreen Interface | 1* Touchscreen Lockable USB; Optional with Touchscreen RS-232 DB9 serial port | ||
Power Supply | 9-32V DC; 1* DC Threaded Jack (5.5* 2.5mm) | ||

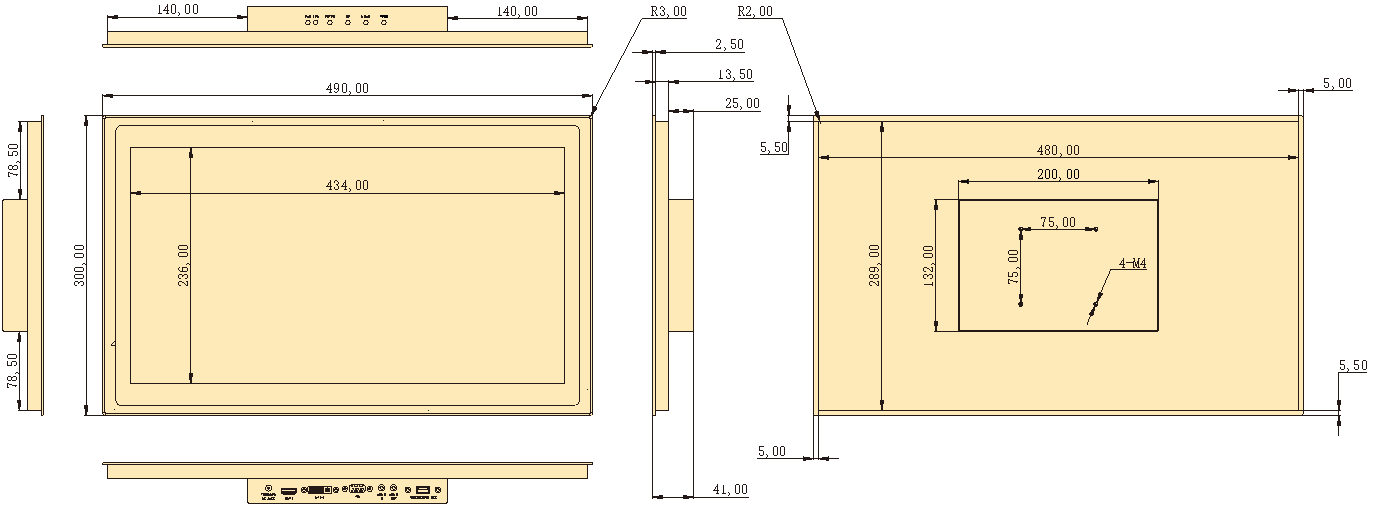

Physical Characteristics | Dimensions | 490*300*41mm (W* H* D) | |
Net Weight | 4.3KG | ||
Regulation | EMC | CE/FCC Class B, CCC | |
Safety | CE-LVD, RoHS, CCC | ||
Part No. | Brightness(cd/m2) | Touch Screen | Video & Audio I/O | Touchscreen Connector | Power Connector | Power Supply |
IDP-1950W-NT | 250 | NA | VGA, DVI, HDMI, Audio In, Audio Out | NA | DC Threaded Jack | 9-32V DC |
IDP-1950W-CT | 250 | Projected Capacitive | VGA, DVI, HDMI, Audio In, Audio Out | USB or RS232 | DC Threaded Jack | 9-32V DC |
Optional Items | Qty | Description |
M Cable 9P/9P (Touchscreen RS-232 cable) | – | 2/3/5/10/15m |
Lockable M cable USB-A(M)/USB-A(M) | – | 2/3m |
Rotatable wall-mounted VESA bracket | – | 75*75mm |
Touchscreen RS-232 module | – | Touch signal transmission distance up to 30m |
Advanced touch-module | – | Support touch function even when there is water on the panel |
VGA cable | – | 2/3/5/10/15m |
HDMI cable | – | 2/3/5/10/15m |
DVI cable, 1.5m | – | 2/3/5/10/15m |
