IDP-2150W

The IDP-2150W system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.

首页 » 产品 » IDP-2150W

Features

The front panel supports IP65 waterproof and dustproof rating, which is suitable for various harsh environments.
Has a wide range of operating temperatures to support normal operation under extreme temperature conditions.
Offers a variety of screen types to meet different needs, including 5-wire resistive touch screen and projected capacitive touch screen.
Standard integrated frame design supports a variety of mounting options, including rear and VESA mounting for easy installation and application flexibility.
Equipped with a variety of video interfaces, including HDMI, VGA and DVI-I, providing a wide range of connectivity options.
Ultra-slim body design is compact and aesthetically pleasing.
Supports multiple operating systems, including Windows and Linux distributions, as well as professional platforms.
Offers a wide range of connectivity options such as USB, Ethernet, HDMI and SIM card slots, with internal interfaces for seamless integration of features such as AI acceleration, 4G/5G connectivity and WiFi/BT modules.

Overview

IDP-2150W series monitors include multiple types of capacitive resistive screen CT, RT options, all aluminium alloy casing, well-built, clearer picture, more point-and-click features. 7″ to 23″ options, perfect ratio, ideal media playback quality via 1* HDMI, 1* DVI-I, 1* VGA, 1* Audio In, Touchscreen lockable USB and 9-32V DC power supply. Superior quality, light weight and slim profile.

Specification

Model	IDP-2150W	IDP-2150W-CT	IDP-2150W-NT
Display Information	Size & Ratio	21.5″, 16:9
	Resolution	1920*1080
	Brightness	250 (Typ.)
	Viewing Angle	89/89/89/89 (Typ.)(CR>=10)
	Contrast Ratio	3000 : 1 (Typ.) ( Transmission )
	Display Colors	16.7m 72% (CIE1931)
	Display Area	476.64*268.11(mm)
	Response Time	13/5 (Typ.)(Tr/Td) ms
	Frequency	60Hz
	Pixel pitch	0.24825
Touchscreen	Touchscreen Type	Projected Capacitive Touchscreen	Non-Touchscreen
	Touchscreen Method	Ten point	–
	Surface	6H	Hard coating
	Durability	–	–
	Transparency	85± 3%	–
Environment	Operating Temperature	0 ~ 50 °C w/ 0.7m/s Airflow	0 ~ 50 °C w/ 0.7m/s Airflow
	Storage Temperature	-20 ~ 60 °C (-4~140 °F)	-20 ~ 60 °C (-4~140 °F)
	Relative Humidity	40 °C @ 95%, Non-Condensing
I/O INTERFACE	Vide & Audio	1* HDMI, 1* DVI-I, 1* VGA, 1* Audio In, 1* Audio Out
	Touchscreen Interface	1* Touchscreen Lockable USB; Optional with Touchscreen RS-232 DB9 serial port
	Power Supply	9-32V DC; 1* DC Threaded Jack (5.5* 2.5mm)
Physical Characteristics	Dimensions	520.8* 316* 43 mm (W* H* D)
	Net Weight
Regulation	EMC	CE/FCC Class B, CCC
	Safety	CE-LVD, RoHS, CCC

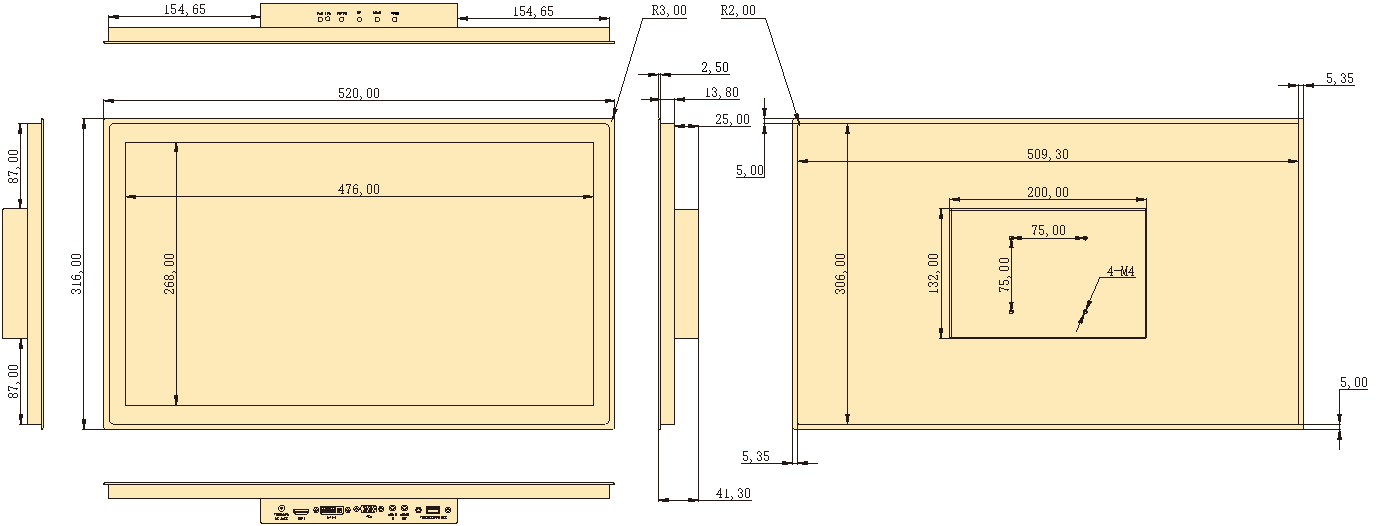

Drawings

Type Information

Part No.	Brightness(cd/m2)	Touch Screen	Video & Audio I/O	Touchscreen Connector	Power Connector	Power Supply
IDP-2150W-NT	250	NA	VGA, DVI, HDMI, Audio In, Audio Out	NA	DC Threaded Jack	9-32V DC
IDP-2150W-CT	250	Projected Capacitive	VGA, DVI, HDMI, Audio In, Audio Out	USB or RS232	DC Threaded Jack	9-32V DC

Accessories

Optional Items	Qty	Description
M Cable 9P/9P (Touchscreen RS-232 cable)	–	2/3/5/10/15m
Lockable M cable USB-A(M)/USB-A(M)	–	2/3m
Rotatable wall-mounted VESA bracket	–	75*75mm
Touchscreen RS-232 module	–	Touch signal transmission distance up to 30m
Advanced touch-module	–	Support touch function even when there is water on the panel
VGA cable	–	2/3/5/10/15m
HDMI cable	–	2/3/5/10/15m
DVI cable, 1.5m	–	2/3/5/10/15m
