IPPC-104V2-2L6C-11TH-09S

The IPPC-104V2-2L6C-11TH-09S system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.

首页 » 产品 » IPPC-104V2-2L6C-11TH-09S

Features

Equipped with the 11th Generation Intel Core and Celeron processors, featuring Intel® Iris® Xe Graphics for powerful computing and graphics capabilities.
Boasts an overall thickness of less than 60mm, coupled with a narrow bezel design, resulting in a compact form factor.
Features an aluminum alloy cooling backplate, integrated with a sealed and fanless system design for dust-proof, anti-vibration, and anti-interference capabilities.
Offers multiple M.2 slots, supporting SSDs, WiFi+BT, and 4G/5G module expansions, catering to diverse needs.
Features a 9.7″ TFT LCD display with options for 5-wire resistive, projected capacitive, and non-touchscreen, offering a resolution of 1024*768.
Boasts a brightness of 350 cd/m², with surface hardness options ranging from 3H to 6H, and touchscreen capabilities supporting single-point or ten-point touch, with a durability of up to 1 million touches.
Features a contrast ratio of 500:1 and supports various transparency options, with the highest reaching over 88%.
Supports up to 64GB of DDR4-3200 MHz RAM and M.2 NVMe/SATA SSD storage, accommodating various application requirements.
Compatible with both Windows and Linux operating systems, including Win 8, Win 10, Win 10 IoT, and various Linux distributions such as Ubuntu, Debian, Kali, CentOS, etc.
Provides 3 RS232, 2 RS232/TTL, 1 RS232/RS485/TTL serial ports, 2 Gigabit Ethernet ports, 6 USB3.0 ports, 2 HDMI video output ports, as well as audio and SIM card slots, fulfilling various connectivity demands.

Overview

IPPC-104V2-2L6C-11TH-09S belongs to the All-in-One series, which is powered by 11th Gen Intel Core/ Celeron CPU with Intel® Iris® Xe Graphics, supports up to 64GB DDR4-3200, and supports dual independent displays via HDMI and VGA. It has a built-in mSATA3.0 slot and SIM card slot for easy desktop installation. It is dust, interference and temperature resistant. Comprehensive connectivity features include 2LAN, 6COM, multiple USB ports in a compact fanless design for edge computing, micro media servers, kiosks, PoS, retail, home or office use.

Specification

*LCD Display*				*Touchscreen*
Display Type		9.7″ TFT LCD (LED backlight)		Touchscreen Type		5-Wire Resistive		Projected Capacitive		Non-Touchscreen
Resolution		1024*768		Touchscreen Method		Single point		Ten point		–
Luminance		350 cd/m2 (Typ.)		Surface		3H		6H		6H
Viewing Angle		70/70/60/70 (Typ.)(CR>=10)		Durability		1 million touches		–		–
Contrast Ratio		500:1 (Typ.) ( Transmission )		Transparency		75%±8%		85±3%		>88%
*System*
CPU	Model		Intel® Core™ i7-1165G7		Intel® Core™ i5-1135G7		Intel® Core™ i3-1115G4		Intel® Celeron® 6305E
	Graphic		Intel® Iris® Xe Graphics, Up to 96 EUs,1.3Ghz		Intel® Iris® Xe Graphics, Up to 80 EUs,1.3Ghz		Intel® UHD Graphics, up to 48 EUs, 1.25Ghz
RAM	SO-DIMM		2* non-ECC SO-DIMM Socket, support DDR4-3200 MHz, up to 64GB
Storage	M.2		1* M.2 (NGFF) 2280 M-key Slot, support PCIex4 NVMe/ SATA3.0 SSD (PCIe x4 NVMe /SATA SSD sel by res, support SATA SSD by default. Intel® Core™ processor support Gen4 NVMe SSD, Intel® Celeron® processor support Gen3 NVMe SSD)
Supported OS	Windows & Linux		Win 8, Win 10; Win 10 IoT, Ubuntu, Dibian, Kali, CentOS, etc.
I/O INTERFACE	COM		3 * RS232 (COM1/2/3, Header, Full lanes); 2 * RS232/TTL (COM4/5, Header, 3 lanes) ; 1 * RS232/RS485/TTL (COM6, Header, 3 lanes) (COM4/5/6 RS232/TTL sel by res, support RS232 by default. COM4/5/6 must be used at the same mode)
	Ethernet		2 * Intel® GBE LAN Chip (10/100/1000 Mbps, RJ45)
	USB		6* USB3.0; 4 * USB2.0 Internal Headers
	Video		2* HDMI(TYPE-A), max resolution up to 4096*2160@30Hz
	Audio		1 * Line-Out + MIC 2in1 3.5mm Jack; With 7.1 channel HD Audio Codec Realtek ALC897; 1 * Amplifier Header
	SIM		1* Built-in nano-SIM Card Slot connected to M.2 B-key slot
	Power Supply		12V DC; 1* DC Threaded Jack (5.5* 2.5mm)
			Optional 9-30V DC PWR module with Terminal Block (2-Pin, 5.08mm)
	Other		1* 8-bit GPIO header with 4 inputs and 4 outputs, Input voltage range: 0-5V;
Extended Capabilities	Additional Internal Interface		1* M.2 (NGFF) E-key Slot (PCIe+USB2.0, Support WiFi+BT, 2230) 1* M.2 (NGFF) B-key Slot (PCIe/USB3.0+USB2.0, Support 5G+4G/3G, with 1* nano-SIM Card Slot, 3052)
Environment	Operating Temperature		Non-Touch: 0~50°C; Capacitive: -20~60°C; (w/ 0.7m/s Airflow)
	Storage Temperature		Non-Touch: 0 ~ 50°C; Capacitive: -20 ~ 60°C
	Relative Humidity		40 °C @ 95%, Non-Condensing
Physical Characteristics	Dimensions		25019552.5 mm
	Net Weight		Around 2kg (The final weight is subject to actual ordering configuration)
Regulation	EMC		CE/FCC Class B, CCC
	Safety		CE-LVD, RoHS, CCC

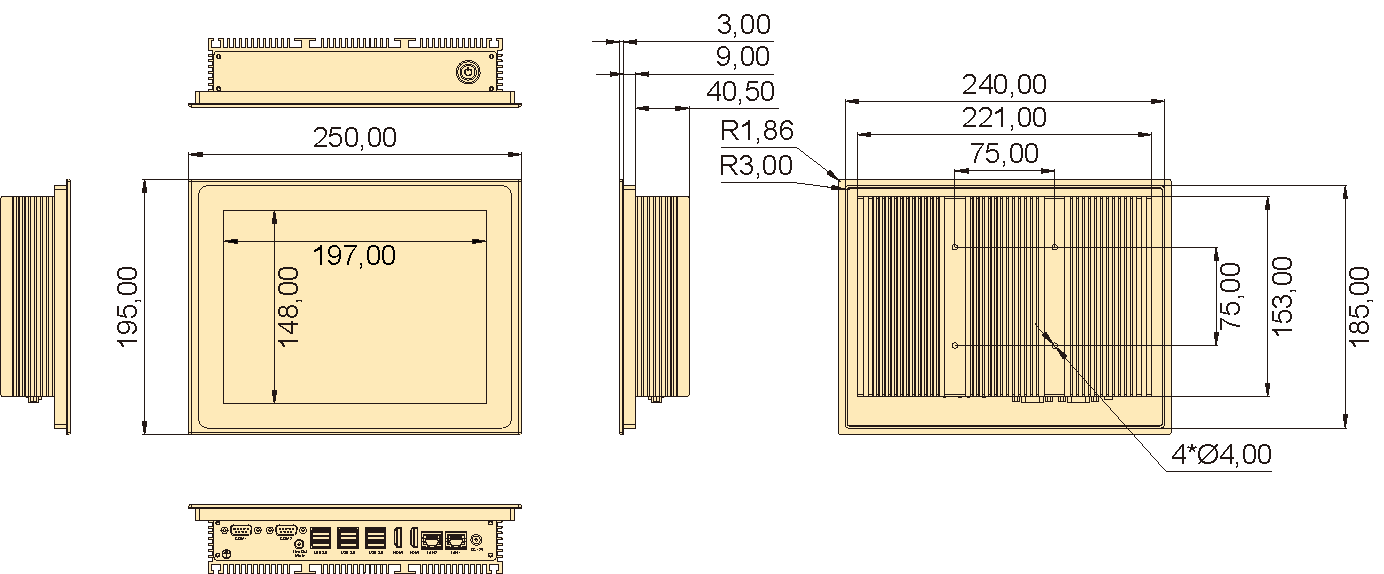

Drawings

processor

CPU	Code Name	Total Cores	Total Threads	Max Turbo Frequency	Base Frequency	Cache	TDP	Memory Types	Integrated Graphics
Intel® Core™ I7-1165G7	Tiger Lake	4	8	4.70 GHz	2.80 GHz	12 MB Intel® Smart Cache	12-28W	DDR4	Intel®Iris Xe Graphics; 96Eus
Intel® Core™ I5-1135G7	Tiger Lake	4	8	4.20 GHz	2.40 GHz	8 MB Intel® Smart Cache	12-28W	DDR4	Intel®Iris Xe Graphics; 80Eus
Intel® Core™ I3-1115G4	Tiger Lake	2	4	4.10 GHz	1.70 GHz	4 MB Intel® Smart Cache	12-28W	DDR4	Intel®Iris Xe Graphics; 48Eus
Intel® Celeron® 6305E	Tiger Lake	2	2	–	1.80 GHz	4 MB Intel® Smart Cache	15W	DDR4	Intel UHD Graphics

Accessories

Optional Items	Max Qty	Description
DC9-30V TO DC-12V PWR module	1	PCB, Power supply voltage conversion module, connected by header
Isolated 8-bit GPIO, 9-26V	1	Phoenix Terminal connector, connected by jumper
Isolated RS-232	6	DB9 or Phoenix Terminal connector, connected by header
Isolated 8-bit GPIO, 9-24V	1	Phoenix Terminal connector, connected by header
4G Module	1	Connected by M.2 interface
5G Module	1	Connected by M.2 interface
WiFi Module without AP mode	1	Connected by M.2 interface
