IPPC-104V2-2L6C-11TH-17S belongs to the All-in-One series, which is powered by 11th Gen Intel Core/ Celeron CPU with Intel® Iris® Xe Graphics, supports up to 64GB DDR4-3200, and supports dual independent displays via HDMI and VGA. It has a built-in mSATA3.0 slot and SIM card slot for easy desktop installation. It is dust, interference and temperature resistant. Comprehensive connectivity features include 2LAN, 6COM, multiple USB ports in a compact fanless design for edge computing, micro media servers, kiosks, PoS, retail, home or office use.
LCD Display | Touchscreen | |||||||||
Display Type | 17″ TFT LCD (LED backlight) | Touchscreen Type | 5-Wire Resistive | Projected Capacitive | Non-Touchscreen | |||||
Resolution | 1280*1024 | Touchscreen Method | Single point | Ten point | – | |||||
Luminance | 250 cd/m2 (Typ.) | Surface | 3H | 6H | 6H | |||||
Viewing Angle | 85/85/80/80 (Typ.)(CR>=10) | Durability | 1 million touches | – | – | |||||
Contrast Ratio | 1000 : 1 (Typ.) ( Transmission ) | Transparency | 75%±8% | 85±3% | >88% | |||||
System | ||||||||||
CPU | Model | Intel® Core™ i7-1165G7 | Intel® Core™ i5-1135G7 | Intel® Core™ i3-1115G4 | Intel® Celeron® 6305E | |||||
Graphic | Intel® Iris® Xe Graphics, Up to 96 EUs,1.3Ghz | Intel® Iris® Xe Graphics, Up to 80 EUs,1.3Ghz | Intel® UHD Graphics, up to 48 EUs, 1.25Ghz | |||||||
RAM | SO-DIMM | 2* non-ECC SO-DIMM Socket, support DDR4-3200 MHz, up to 64GB | ||||||||
Storage | M.2 | 1* M.2 (NGFF) 2280 M-key Slot, support PCIex4 NVMe/ SATA3.0 SSD (PCIe x4 NVMe /SATA SSD sel by res, support SATA SSD by default. Intel® Core™ processor support Gen4 NVMe SSD, Intel® Celeron® processor support Gen3 NVMe SSD) | ||||||||
Supported OS | Windows & Linux | Win 8, Win 10; Win 10 IoT, Ubuntu, Dibian, Kali, CentOS, etc. | ||||||||
I/O INTERFACE | COM | 3 * RS232 (COM1/2/3, Header, Full lanes); 2 * RS232/TTL (COM4/5, Header, 3 lanes) ; 1 * RS232/RS485/TTL (COM6, Header, 3 lanes) (COM4/5/6 RS232/TTL sel by res, support RS232 by default. COM4/5/6 must be used at the same mode) | ||||||||
Ethernet | 2 * Intel® GBE LAN Chip (10/100/1000 Mbps, RJ45) | |||||||||
USB | 6* USB3.0; 4 * USB2.0 Internal Headers | |||||||||
Video | 2* HDMI(TYPE-A), max resolution up to 4096*2160@30Hz | |||||||||
Audio | 1 * Line-Out + MIC 2in1 3.5mm Jack; With 7.1 channel HD Audio Codec Realtek ALC897; 1 * Amplifier Header | |||||||||
SIM | 1* Built-in nano-SIM Card Slot connected to M.2 B-key slot | |||||||||
Power Supply | 12V DC; 1* DC Threaded Jack (5.5* 2.5mm) | |||||||||
Optional 9-30V DC PWR module with Terminal Block (2-Pin, 5.08mm) | ||||||||||
Other | 1* 8-bit GPIO header with 4 inputs and 4 outputs, Input voltage range: 0-5V; | |||||||||
Extended Capabilities | Additional Internal Interface | 1* M.2 (NGFF) E-key Slot (PCIe+USB2.0, Support WiFi+BT, 2230) 1* M.2 (NGFF) B-key Slot (PCIe/USB3.0+USB2.0, Support 5G+4G/3G, with 1* nano-SIM Card Slot, 3052) | ||||||||
Environment | Operating Temperature | Non-Touch: 0~50°C; Capacitive: -20~60°C; (w/ 0.7m/s Airflow) | ||||||||
Storage Temperature | Non-Touch: 0 ~ 50°C; Capacitive: -20 ~ 60°C | |||||||||
Relative Humidity | 40 °C @ 95%, Non-Condensing | |||||||||

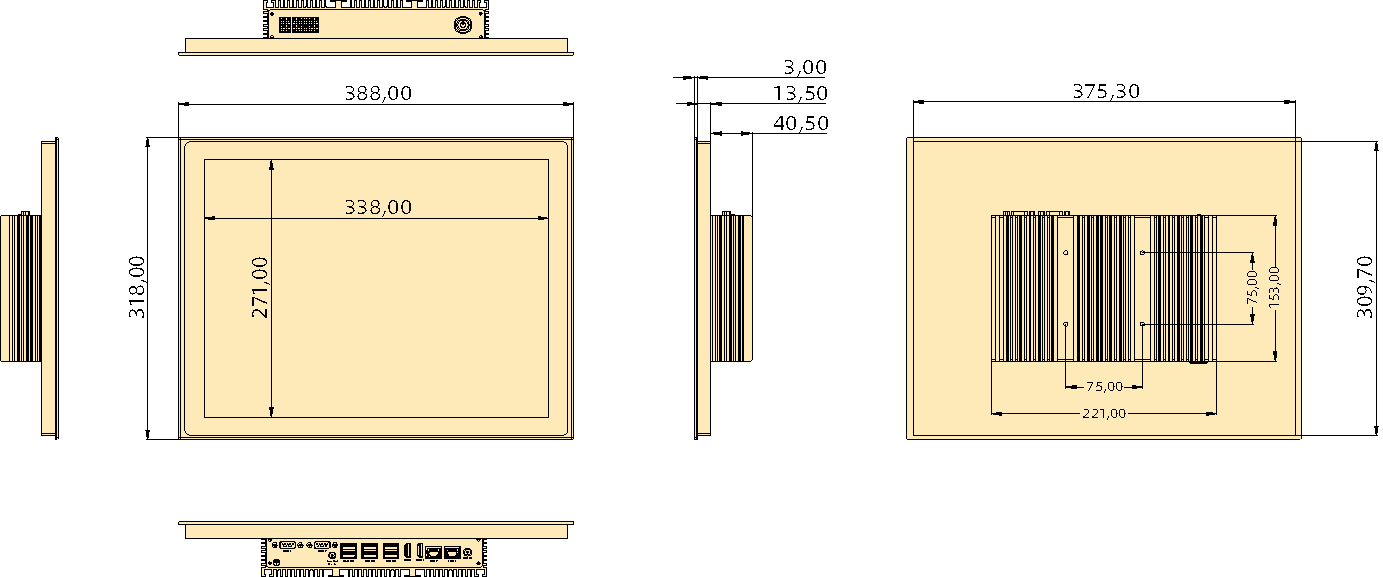

Physical Characteristics | Dimensions | 388*318*57 mm | ||||||||
Net Weight | Around 4.5kg (The final weight is subject to actual ordering configuration) | |||||||||
Regulation | EMC | CE/FCC Class B, CCC | ||||||||
Safety | CE-LVD, RoHS, CCC | |||||||||
CPU | Code Name | Total Cores | Total Threads | Max Turbo Frequency | Base Frequency | Cache | TDP | Memory Types | Integrated Graphics |
Intel® Core™ I7-1165G7 | Tiger Lake | 4 | 8 | 4.70 GHz | 2.80 GHz | 12 MB Intel® Smart Cache | 12-28W | DDR4 | Intel®Iris Xe Graphics; 96Eus |
Intel® Core™ I5-1135G7 | Tiger Lake | 4 | 8 | 4.20 GHz | 2.40 GHz | 8 MB Intel® Smart Cache | 12-28W | DDR4 | Intel®Iris Xe Graphics; 80Eus |
Intel® Core™ I3-1115G4 | Tiger Lake | 2 | 4 | 4.10 GHz | 1.70 GHz | 4 MB Intel® Smart Cache | 12-28W | DDR4 | Intel®Iris Xe Graphics; 48Eus |
Intel® Celeron® 6305E | Tiger Lake | 2 | 2 | – | 1.80 GHz | 4 MB Intel® Smart Cache | 15W | DDR4 | Intel UHD Graphics |
Optional Items | Max Qty | Description |
DC9-30V TO DC-12V PWR module | 1 | PCB, Power supply voltage conversion module, connected by header |
Isolated 8-bit GPIO, 9-26V | 1 | Phoenix Terminal connector, connected by jumper |
Isolated RS-232 | 6 | DB9 or Phoenix Terminal connector, connected by header |
Isolated 8-bit GPIO, 9-24V | 1 | Phoenix Terminal connector, connected by header |
4G Module | 1 | Connected by M.2 interface |
5G Module | 1 | Connected by M.2 interface |
WiFi Module without AP mode | 1 | Connected by M.2 interface |
