IPPC-104V2-2L6C-12W

The IPPC-104V2-2L6C -12W system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.
  • Equipped with the 11th Generation Intel Core and Celeron processors, featuring Intel® Iris® Xe Graphics for powerful computing and graphics capabilities.
  • Boasts an overall thickness of less than 60mm, coupled with a narrow bezel design, resulting in a compact form factor.
  • Features an aluminum alloy cooling backplate, integrated with a sealed and fanless system design for dust-proof, anti-vibration, and anti-interference capabilities.
  • Offers multiple M.2 slots, supporting SSDs, WiFi+BT, and 4G/5G module expansions, catering to diverse needs.
  • Features a 12.1″ TFT LCD display with options for 5-wire resistive, projected capacitive, and non-touchscreen, offering a resolution of 1280*800.
  • Boasts a brightness of 400 cd/m², with surface hardness options ranging from 3H to 6H, and touchscreen capabilities supporting single-point or ten-point touch, with a durability of up to 1 million touches.
  • Features a contrast ratio of 800:1 and supports various transparency options, with the highest reaching over 88%.
  • Supports up to 64GB of DDR4-3200 MHz RAM and M.2 NVMe/SATA SSD storage, accommodating various application requirements.
  • Compatible with both Windows and Linux operating systems, including Win 8, Win 10, Win 10 IoT, and various Linux distributions such as Ubuntu, Debian, Kali, CentOS, etc.
  • Provides 3 RS232, 2 RS232/TTL, 1 RS232/RS485/TTL serial ports, 2 Gigabit Ethernet ports, 6 USB3.0 ports, 2 HDMI video output ports, as well as audio and SIM card slots, fulfilling various connectivity demands.

IPPC-104V2-2L6C-12W belongs to the All-in-One series, which is powered by Gen Intel Core/ Celeron CPU with Intel® Iris® Xe Graphics, supports up to 64GB DDR4-3200, and supports dual independent displays via HDMI and VGA. It has a built-in mSATA3.0 slot and SIM card slot for easy desktop installation. It is dust, interference and temperature resistant. Comprehensive connectivity features include 2LAN, 6COM, multiple USB ports in a compact fanless design for edge computing, micro media servers, kiosks, PoS, retail, home or office use.

LCD Display

Touchscreen

Display Type

12.1″ TFT LCD (LED backlight)

Touchscreen Type

5-Wire Resistive

Projected Capacitive

Non-Touchscreen

Resolution

1280*800

Touchscreen Method

Single point

Ten point

–

Luminance

400 cd/m2 (Typ.)

Surface

3H

6H

6H

Viewing Angle

80/80/65/80 (Typ.)(CR>=10)

Durability

1 million touches

–

–

Contrast Ratio

800:1 (Typ.) ( Transmission )

Transparency

75%±8%

85±3%

>88%

System

CPU

Model

Intel® Celeron® J1900

Intel® Core™ I5-4300U

Intel® Core™ I5-6200U

Intel® Celeron® J4125





RAM

Type&Qty

1* SO-DIMM Socket

1* SO-DIMM Socket

1* SO-DIMM Socket

1* SO-DIMM Socket

Frequency

DDR3L-1333 MHz

DDR3L-1333/1600 MHz

DDR4 2133 MHz

DDR4 2400 MHz

Capacity

Up to 8GB

Up to 8GB

Up to 32GB

Up to 8GB

Storage

MSATA

1* mSATA2.0 slot on board (3Gb/s)

1* mSATA3.0 slot on board (6Gb/s)

Supported OS

Windows & Linux

Win 7, Win 8, Win 10, WES 7; Win 10 IoT, Ubuntu, Dibian, Kali, CentOS, etc.)





















I/O INTERFACE





COM



2* RS232/485 (COM1-2, DB9)

4* RS232 (COM3-6, Header)

1* RS232/422/485 (COM2)

1* RS232/485 (COM3)

4* RS232 (COM1/4/5/6)

All headers



2* RS232/485 (COM1/3)

4* RS232 (COM2/4/5/6)

All headers



2* RS232/422/485 (COM2/3)

4* RS232 (COM1/4/5/6)

All headers

Ethernet

2* Realtek 8111H GbE LAN

2* Intel® i211 GbE LAN

2* Intel® i211 GbE LAN

2* Realtek 8111H GbE LAN



USB

3* USB2.0, 1* USB3.0

5* USB2.0 Headers

4* USB2.0, 2* USB3.0

2* USB2.0 Headers

1* USB2.0, 2* USB3.0

4* USB2.0 Headers

1* USB2.0, 2* USB3.0

4* USB2.0 Headers



Video

1* HDMI, 1920×1200@60Hz

1* VGA header

1* HDMI, 3280×2000@60Hz

1* VGA, 1920×1200@60Hz

1* HDMI, 4096×2304@24Hz

1* VGA, 1920×1200@60Hz

1* HDMI, 4096×2160@30Hz

1* VGA, 1920×1200@60Hz



Audio

1*SPK header; With 5.1 channels HD Audio Codec Realtek ALC662

1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662

1* SPK; With 2 channels USB Audio Codec HS-100B

1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662

SIM

1* Built-in SIM card slot connected to Mini-PCIe



Power Supply

12V DC; 1* Terminal Block (2-Pin, 5.08mm);

12V DC; 1* DC Jack (5.5* 2.5mm);

Optional 9-30V DC PWR module with Terminal Block (2-Pin, 5.08mm)



Other

1* 8-bit GPIO header;

1* Remote SwitchTerminal (2-Pin, 3.81mm)

1* 8-bit GPIO header;

Optional: 1* Terminal Block (4-Pin, 3.81mm Pitch) with Remote Switch and Power Indicator

Extended Capabilities

Additional Internal Interface



1* Full Size Mini-PCIe with SIM card slot (PCIe+USB2.0)





Environment

Operating Temperature

Non-Touch: -30~80°C; Capacitive: -20~70°C; Resistive: -10~50°C; (w/ 0.7m/s Airflow)

Storage Temperature

Non-Touch: -30 ~ 80°C; Capacitive: -20 ~ 70°C; Resistive: -20 ~ 50°C

Relative Humidity

40 °C @ 95%, Non-Condensing

Physical Characteristics

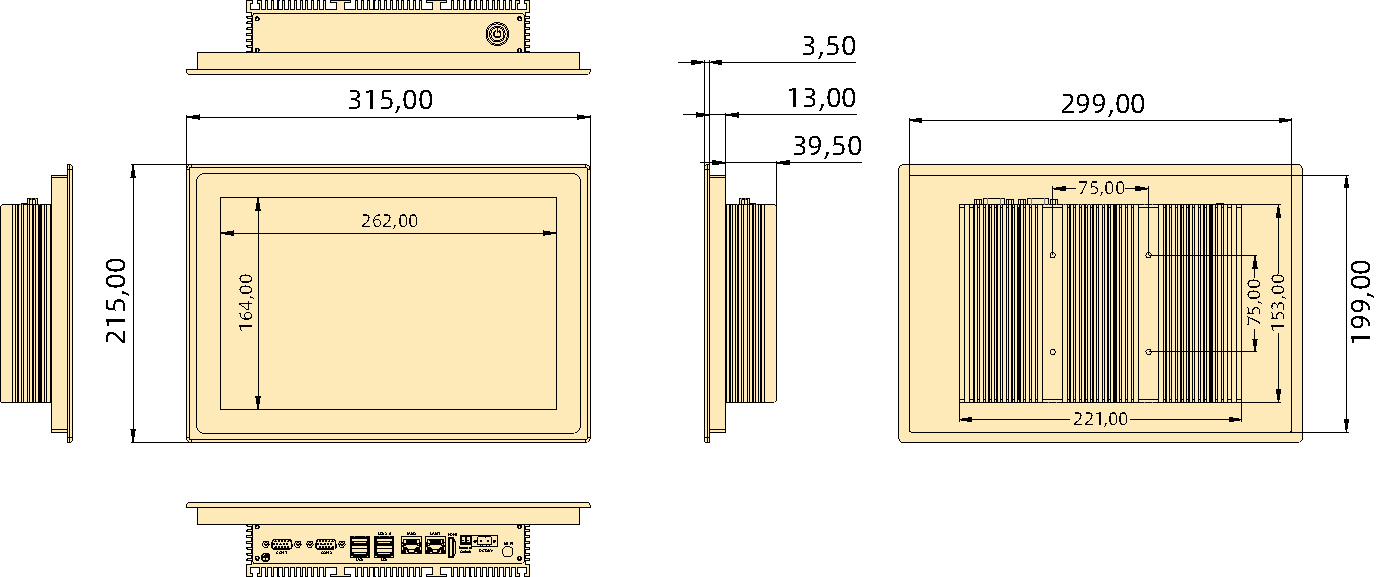

Dimensions

315*215*56 mm

Net Weight

Around 2.55kg (The final weight is subject to actual ordering configuration)



Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC

CPU

 Code Name

Total Cores

Total Threads

Max Turbo Frequency

Base Frequency

 Cache

 TDP

Memory Types

 Integrated Graphics

Intel® Celeron® J1900

Bay Trail

4

4

–

2.00 GHz

2 MB L2 Cache

10W

DDR3

Intel® HD Graphics

Intel® Core™ I5-4300U

Haswell

2

4

2.90 GHz

1.90 GHz

3 MB Intel® Smart Cache

15W

DDR3

Intel® HD Graphics 4400

Intel® Core™ I5-6200U

Skylake

2

4

2.80 GHz

2.30 GHz

3 MB Intel® Smart Cache

15W

DDR4

Intel® HD Graphics 4400

Intel® Celeron® J4125

Gemini Lake

4

4

–

2.00 GHz

4 MB

10W

DDR4

Intel® UHD Graphics 600

Optional Items

Max Qty

Description

DC9-30V TO DC 12V PWR module

1

Phoenix Terminal connector, Power supply voltage conversion module, connected by header

Isolated 8-bit GPIO, 9-26V

1

Phoenix Terminal connector, connected by jumper

Isolated RS-232

6

DB9 or Phoenix Terminal connector, connected by header

Isolated 8-bit GPIO, 9-24V

1

Phoenix Terminal connector, connected by header

4G Module

1

Connected by Mini-PCIe interface

WiFi Module without AP mode

1

Connected by Mini-PCIe interface

WiFi Module with AP mode

1

Connected by Mini-PCIe interface
