IPPC-104V2-2L6C-15S

The IPPC-104V2-2L6C-15S system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.
  • The product offers a choice of projected capacitive, resistive touchscreen, and non-touchscreen options. The resistive touchscreen version includes a ten-point multi-touch capability for enhanced user interaction.
  • The overall thickness of the product is under 60mm, making it an ultra-thin and sleek display solution.
  • The narrow bezel design results in a more compact overall size, enhancing the visual appeal and maximizing the display area.
  • The backshell is made of aluminum alloy, providing effective cooling and ensuring dustproof, anti-vibration, and anti-interference properties.
  • The product supports a variety of interface customization options to meet specific application requirements.
  • The 15″ TFT LCD display with LED backlight offers a resolution of 1024×768, ensuring clear and vibrant visuals.
  • The touchscreen options, including the ten-point resistive touchscreen, are designed for durability, with high luminance and scratch-resistant surfaces.
  • The system can be equipped with various CPUs, ranging from Intel Celeron to Core i5, providing ample processing power for demanding applications.
  • The product supports up to 32GB of RAM and offers mSATA slots for fast and reliable storage options.
  • The product is compatible with various operating systems, including Windows and Linux variants, ensuring compatibility with a wide range of software and applications.

IPPC-104V2-2L6C-15S belongs to the All-in-One series, which is powered by Gen Intel Core/ Celeron CPU with Intel® Iris® Xe Graphics, supports up to 64GB DDR4-3200, and supports dual independent displays via HDMI and VGA. It has a built-in mSATA3.0 slot and SIM card slot for easy desktop installation. It is dust, interference and temperature resistant. Comprehensive connectivity features include 2LAN, 6COM, multiple USB ports in a compact fanless design for edge computing, micro media servers, kiosks, PoS, retail, home or office use.

LCD Display

Touchscreen

Display Type

15″ TFT LCD (LED backlight)

Touchscreen Type

5-Wire Resistive

Projected Capacitive

Non-Touchscreen

Resolution

1024*768

Touchscreen Method

Single point

Ten point

–

Luminance

350 cd/m2 (Typ.)

Surface

3H

6H

6H

Viewing Angle

89/89/89/89 (Typ.)(CR>=10)

Durability

1 million touches

–

–

Contrast Ratio

1000:1 (Typ.) ( Transmission )

Transparency

75%±8%

85±3%

>88%

System

CPU

Model

Intel® Celeron® J1900

Intel® Core™ I5-4300U

Intel® Core™ I5-6200U

Intel® Celeron® J4125





RAM

Type&Qty

1* SO-DIMM Socket

1* SO-DIMM Socket

1* SO-DIMM Socket

1* SO-DIMM Socket

Frequency

DDR3L-1333 MHz

DDR3L-1333/1600 MHz

DDR4 2133 MHz

DDR4 2400 MHz

Capacity

Up to 8GB

Up to 8GB

Up to 32GB

Up to 8GB

Storage

MSATA

1* mSATA2.0 slot on board (3Gb/s)

1* mSATA3.0 slot on board (6Gb/s)

Supported OS

Windows & Linux

Win 7, Win 8, Win 10, WES 7; Win 10 IoT, Ubuntu, Dibian, Kali, CentOS, etc.)





















I/O INTERFACE





COM



2* RS232/485 (COM1-2, DB9)

4* RS232 (COM3-6, Header)

1* RS232/422/485 (COM2)

1* RS232/485 (COM3)

4* RS232 (COM1/4/5/6)

All headers



2* RS232/485 (COM1/3)

4* RS232 (COM2/4/5/6)

All headers



2* RS232/422/485 (COM2/3)

4* RS232 (COM1/4/5/6)

All headers

Ethernet

2* Realtek 8111H GbE LAN

2* Intel® i211 GbE LAN

2* Intel® i211 GbE LAN

2* Realtek 8111H GbE LAN



USB

3* USB2.0, 1* USB3.0

5* USB2.0 Headers

4* USB2.0, 2* USB3.0

2* USB2.0 Headers

1* USB2.0, 2* USB3.0

4* USB2.0 Headers

1* USB2.0, 2* USB3.0

4* USB2.0 Headers



Video

1* HDMI, 1920×1200@60Hz

1* VGA header

1* HDMI, 3280×2000@60Hz

1* VGA, 1920×1200@60Hz

1* HDMI, 4096×2304@24Hz

1* VGA, 1920×1200@60Hz

1* HDMI, 4096×2160@30Hz

1* VGA, 1920×1200@60Hz



Audio

1*SPK header; With 5.1 channels HD Audio Codec Realtek ALC662

1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662

1* SPK; With 2 channels USB Audio Codec HS-100B

1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662

SIM

1* Built-in SIM card slot connected to Mini-PCIe



Power Supply

12V DC; 1* Terminal Block (2-Pin, 5.08mm);

12V DC; 1* DC Jack (5.5* 2.5mm);

Optional 9-30V DC PWR module with Terminal Block (2-Pin, 5.08mm)



Other

1* 8-bit GPIO header;

1* Remote SwitchTerminal (2-Pin, 3.81mm)

1* 8-bit GPIO header;

Optional: 1* Terminal Block (4-Pin, 3.81mm Pitch) with Remote Switch and Power Indicator

Extended Capabilities

Additional Internal Interface



1* Full Size Mini-PCIe with SIM card slot (PCIe+USB2.0)





Environment

Operating Temperature

Non-Touch: -20~70°C; Capacitive: -20~70°C; Resistive: -10~50°C; (w/ 0.7m/s Airflow)

Storage Temperature

Non-Touch: -20 ~ 70°C; Capacitive: -20 ~ 70°C; Resistive: -20 ~ 50°C

Relative Humidity

40 °C @ 95%, Non-Condensing

Physical Characteristics

Dimensions

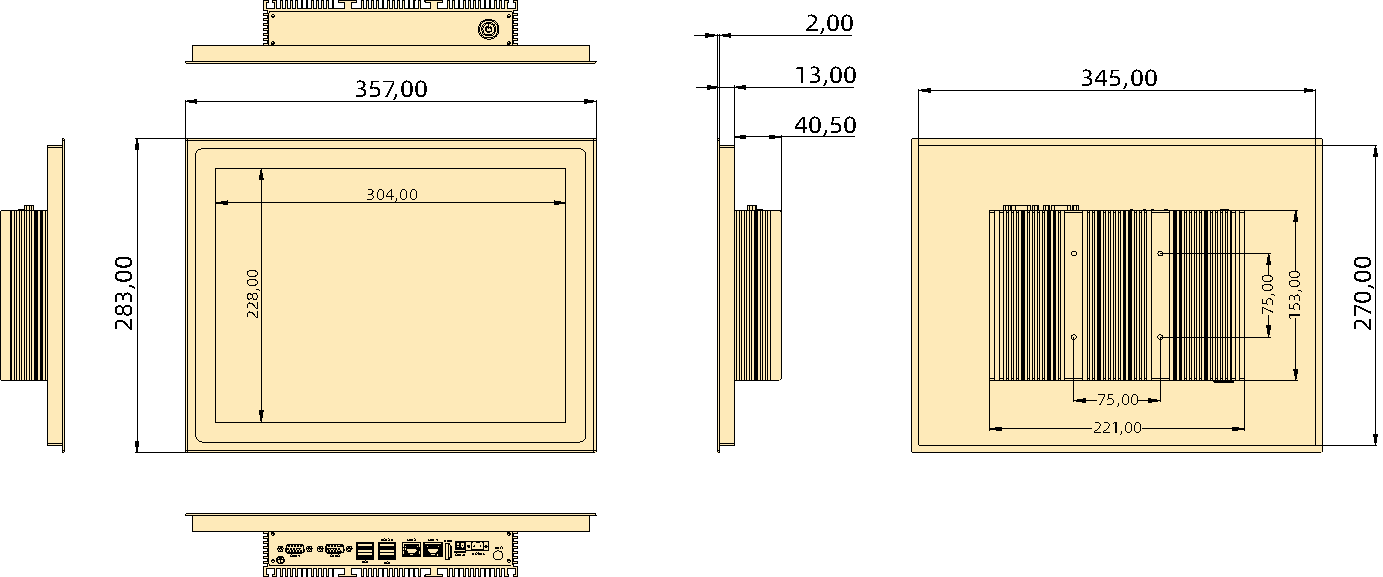

357*283*55.5 mm

Net Weight

Around 4.2kg (The final weight is subject to actual ordering configuration)



Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC

 CPU

 Code Name

Total Cores

Total Threads

Max Turbo Frequency

Base Frequency

 Cache

 TDP

Memory Types

 Integrated Graphics

Intel® Celeron® J1900

Bay Trail

4

4

–

2.00 GHz

2 MB L2 Cache

10W

DDR3

Intel® HD Graphics

Intel® Core™ I5-4300U

Haswell

2

4

2.90 GHz

1.90 GHz

3 MB Intel® Smart Cache

15W

DDR3

Intel® HD Graphics 4400

Intel® Core™ I5-6200U

Skylake

2

4

2.80 GHz

2.30 GHz

3 MB Intel® Smart Cache

15W

DDR4

Intel® HD Graphics 4400

Intel® Celeron® J4125

Gemini Lake

4

4

–

2.00 GHz

4 MB

10W

DDR4

Intel® UHD Graphics 600

Optional Items

Max Qty

Description

DC9-30V TO DC 12V PWR module

1

Phoenix Terminal connector, Power supply voltage conversion module, connected by header

Isolated 8-bit GPIO, 9-26V

1

Phoenix Terminal connector, connected by jumper

Isolated RS-232

6

DB9 or Phoenix Terminal connector, connected by header

Isolated 8-bit GPIO, 9-24V

1

Phoenix Terminal connector, connected by header

4G Module

1

Connected by Mini-PCIe interface

WiFi Module without AP mode

1

Connected by Mini-PCIe interface

WiFi Module with AP mode

1

Connected by Mini-PCIe interface
