IPPC-104V2-2L6C-21W

The IPPC-104V2-2L6C-21W system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.
  • The product offers a choice of projected capacitive, resistive touchscreen, and non-touchscreen options. The resistive touchscreen version includes a ten-point multi-touch capability for enhanced user interaction.
  • The overall thickness of the product is under 60mm, making it an ultra-thin and sleek display solution.
  • The narrow bezel design results in a more compact overall size, enhancing the visual appeal and maximizing the display area.
  • The backshell is made of aluminum alloy, providing effective cooling and ensuring dustproof, anti-vibration, and anti-interference properties.
  • The product supports a variety of interface customization options to meet specific application requirements.
  • The 21.5″ TFT LCD display with LED backlight offers a resolution of 1920×1080, ensuring clear and vibrant visuals.
  • The touchscreen options, including the ten-point resistive touchscreen, are designed for durability, with high luminance and scratch-resistant surfaces.
  • The system can be equipped with various CPUs, ranging from Intel Celeron to Core i5, providing ample processing power for demanding applications.
  • The product supports up to 32GB of RAM and offers mSATA slots for fast and reliable storage options.
  • The product is compatible with various operating systems, including Windows and Linux variants, ensuring compatibility with a wide range of software and applications.

IPPC-104V2-2L6C-21W belongs to the All-in-One series, which is powered by Gen Intel Core/Celeron CPU with Intel® Iris® Xe Graphics, supports up to 64GB DDR4-3200, and supports dual independent displays via HDMI and VGA. It has a built-in mSATA3.0 slot and SIM card slot for easy desktop installation. It is dust, interference and temperature resistant. Comprehensive connectivity features include 2LAN, 6COM, multiple USB ports in a compact fanless design for edge computing, micro media servers, kiosks, PoS, retail, home or office use.

LCD Display

Touchscreen

Display Type

21.5″ TFT LCD (LED backlight)

Touchscreen Type

Projected Capacitive

Non-Touchscreen

Resolution

1920*1080

Touchscreen Method

Ten point

–

Luminance

250 cd/m2 (Typ.)

Surface

6H

6H

Viewing Angle

89/89/89/89 (Typ.)(CR>=10)

Durability

–

–

Contrast Ratio

3000 : 1 (Typ.) ( Transmission )

Transparency

85±3%

>88%



System

CPU

Model

Intel® Celeron® J1900

Intel® Core™ I5-4300U

Intel® Core™ I5-6200U

Intel® Celeron® J4125





RAM

Type&Qty

1* SO-DIMM Socket

1* SO-DIMM Socket

1* SO-DIMM Socket

1* SO-DIMM Socket

Frequency

DDR3L-1333 MHz

DDR3L-1333/1600 MHz

DDR4 2133 MHz

DDR4 2400 MHz

Capacity

Up to 8GB

Up to 8GB

Up to 32GB

Up to 8GB

Storage

MSATA

1* mSATA2.0 slot on board (3Gb/s)

1* mSATA3.0 slot on board (6Gb/s)

Supported OS

Windows & Linux

Win 7, Win 8, Win 10, WES 7; Win 10 IoT, Ubuntu, Dibian, Kali, CentOS, etc.)





















I/O INTERFACE





COM



2* RS232/485 (COM1-2, DB9)

4* RS232 (COM3-6, Header)

1* RS232/422/485 (COM2)

1* RS232/485 (COM3)

4* RS232 (COM1/4/5/6)

All headers



2* RS232/485 (COM1/3)

4* RS232 (COM2/4/5/6)

All headers



2* RS232/422/485 (COM2/3)

4* RS232 (COM1/4/5/6)

All headers

Ethernet

2* Realtek 8111H GbE LAN

2* Intel® i211 GbE LAN

2* Intel® i211 GbE LAN

2* Realtek 8111H GbE LAN



USB

3* USB2.0, 1* USB3.0

5* USB2.0 Headers

4* USB2.0, 2* USB3.0

2* USB2.0 Headers

1* USB2.0, 2* USB3.0

4* USB2.0 Headers

1* USB2.0, 2* USB3.0

4* USB2.0 Headers



Video

1* HDMI, 1920×1200@60Hz

1* VGA header

1* HDMI, 3280×2000@60Hz

1* VGA, 1920×1200@60Hz

1* HDMI, 4096×2304@24Hz

1* VGA, 1920×1200@60Hz

1* HDMI, 4096×2160@30Hz

1* VGA, 1920×1200@60Hz



Audio

1*SPK header; With 5.1 channels HD Audio Codec Realtek ALC662

1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662

1* SPK; With 2 channels USB Audio Codec HS-100B

1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662

SIM

1* Built-in SIM card slot connected to Mini-PCIe



Power Supply

12V DC; 1* Terminal Block (2-Pin, 5.08mm);

12V DC; 1* DC Jack (5.5* 2.5mm);

Optional 9-30V DC PWR module with Terminal Block (2-Pin, 5.08mm)



Other

1* 8-bit GPIO header;

1* Remote SwitchTerminal (2-Pin, 3.81mm)

1* 8-bit GPIO header;

Optional: 1* Terminal Block (4-Pin, 3.81mm Pitch) with Remote Switch and Power Indicator

Extended Capabilities

Additional Internal Interface



1* Full Size Mini-PCIe with SIM card slot (PCIe+USB2.0)





Environment

Operating Temperature

Non-Touch: 0~50°C; Capacitive: -20~60°C; (w/ 0.7m/s Airflow)

Storage Temperature

Non-Touch: 0 ~ 50°C; Capacitive: -20 ~ 60°C

Relative Humidity

40 °C @ 95%, Non-Condensing

Physical Characteristics

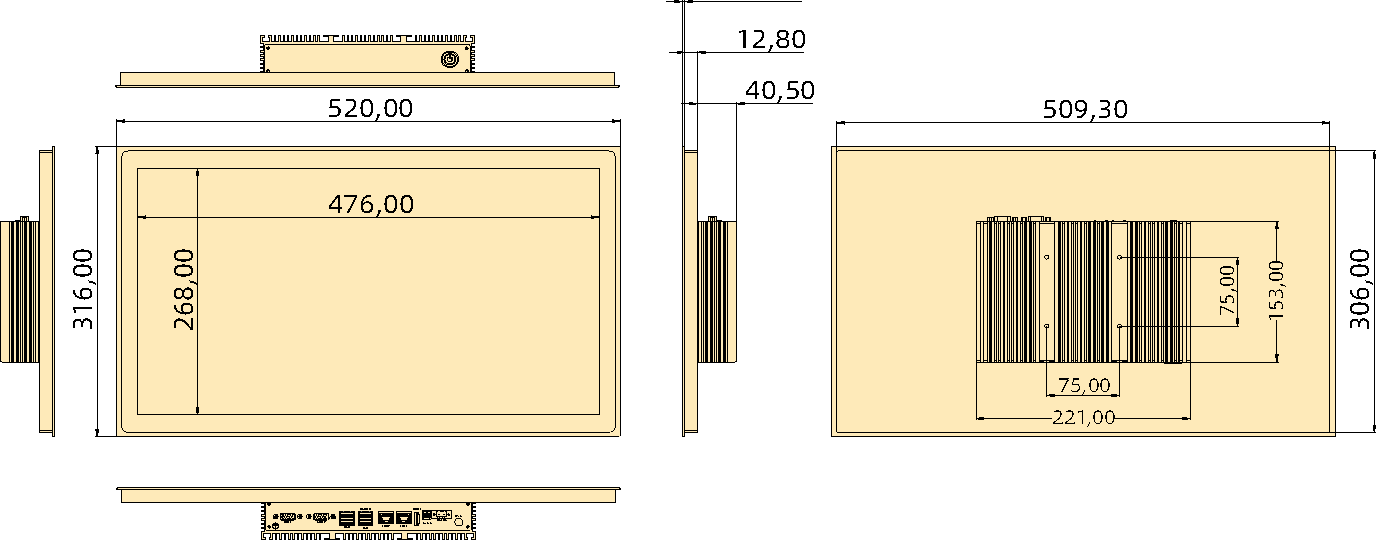

Dimensions

520*316*55.8 mm

Net Weight

Around 6.3kg (The final weight is subject to actual ordering configuration)



Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC

 CPU

 Code Name

Total Cores

Total Threads

Max Turbo Frequency

Base Frequency

 Cache

 TDP

Memory Types

 Integrated Graphics

Intel® Celeron® J1900

Bay Trail

4

4

–

2.00 GHz

2 MB L2 Cache

10W

DDR3

Intel® HD Graphics

Intel® Core™ I5-4300U

Haswell

2

4

2.90 GHz

1.90 GHz

3 MB Intel® Smart Cache

15W

DDR3

Intel® HD Graphics 4400

Intel® Core™ I5-6200U

Skylake

2

4

2.80 GHz

2.30 GHz

3 MB Intel® Smart Cache

15W

DDR4

Intel® HD Graphics 4400

Intel® Celeron® J4125

Gemini Lake

4

4

–

2.00 GHz

4 MB

10W

DDR4

Intel® UHD Graphics 600

Optional Items

Max Qty

Description

DC9-30V TO DC 12V PWR module

1

Phoenix Terminal connector, Power supply voltage conversion module, connected by header

Isolated 8-bit GPIO, 9-26V

1

Phoenix Terminal connector, connected by jumper

Isolated RS-232

6

DB9 or Phoenix Terminal connector, connected by header

Isolated 8-bit GPIO, 9-24V

1

Phoenix Terminal connector, connected by header

4G Module

1

Connected by Mini-PCIe interface

WiFi Module without AP mode

1

Connected by Mini-PCIe interface

WiFi Module with AP mode

1

Connected by Mini-PCIe interface
