IPPC-104V2-4L6C-09S

The IPPC-104V2-4L6C-09S system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.
  • Equipped with the 11th Generation Intel Core/Celeron CPU, featuring Intel® Iris® Xe Graphics, providing exceptional computing performance and graphics processing capabilities.
  • With an overall thickness of less than 60mm and a narrow bezel design, making the device compact and portable.
  • Utilizes an aluminum alloy cooling backplate combined with a sealed, fanless design, achieving dust-proof, shock-resistant, and anti-interference features to ensure stable operation.
  • Offers multiple M.2 slots, WiFi+BT, 4G/5G module support, as well as a range of serial ports, Ethernet ports, USB ports, etc., catering to diverse connection and expansion needs.
  • Features a 9.7″ TFT LCD display with options for 5-wire resistive or projected capacitive touchscreen, boasting a resolution of 1024*768, suitable for various application scenarios.
  • Supports MSATA 3.0 slots and SO-DIMM DDR3L memory slots, with a maximum of 8GB RAM, meeting diverse storage and performance requirements.
  • Compatible with both Windows and Linux operating systems, including Win 7 to Win 11, Ubuntu, Debian, and more, providing a wide range of system options.
  • Equipped with multiple HDMI and VGA interfaces, supporting high-resolution video output for various display devices and scenarios.
  • Integrated with Realtek ALC662 5.1-channel HD audio codec, delivering superior audio output.
  • Supports 12V DC power supply with an optional 9-30V DC PWR module. Features a GPIO interface with remote switch and power indicator, offering additional hardware control functionalities.

IPPC-104V2-4L6C-09S belongs to the All-in-One series, which is powered by Intel® Core™ i5, i7, supports up to 8GB DDR3L, and supports dual independent displays via HDMI and VGA. It has a built-in mSATA3.0 slot and SIM card slot for easy desktop installation. It is dust, interference and temperature resistant. Comprehensive connectivity features include 4LAN and multiple USB ports in a compact fanless design for edge computing, micro media servers, kiosks, PoS, retail, home or office use.

LCD Display

Touchscreen

Display Type

9.7″ TFT LCD (LED backlight)

Touchscreen Type

5-Wire Resistive

Projected Capacitive

Non-Touchscreen

Resolution

1024*768

Touchscreen Method

Single point

Ten point

–

Luminance

350 cd/m2 (Typ.)

Surface

3H

6H

6H

Viewing Angle

70/70/60/70 (Typ.)(CR>=10)

Durability

1 million touches

–

–

Contrast Ratio

500:1 (Typ.) ( Transmission )

Transparency

75%±8%

85±3%

>88%

System

CPU

Model

Intel® Core™ I5-4300U, Dual-core, 1.90 GHz

Intel® Core™ I7-4600U, Dual-core, 2.10 GHz

RAM

SO-DIMM

1* SO-DIMM Socket, DDR3L-1333/1600 MHz, Up to 8GB

Storage

MSATA

1* mSATA3.0 slot on board (6Gb/s)

Supported OS

Windows & Linux

Win 7, Win 8, Win 10, Win11, Linux (Ubuntu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT















I/O INTERFACE

COM

1* RS232/422/485 header (COM2); 1* RS232/485 header (COM3); 4* RS232 header (COM1/4/5/6);

Ethernet

4* Intel® i211 GbE LAN, support network wake-up/PXE function

USB

2* USB2.0; 2* USB3.0; 2* USB 2.0 header



Video

1* HDMI, support 3280×2000@60Hz; 1* VGA, support 1920×1200@60Hz;

1* HDMI, support 3200×2000@60Hz; 1* VGA, support 1920×1200@60Hz;

Audio

1* Line out; With 5.1 channels HD Audio Codec Realtek ALC662

1* Line out; With 5.1 channels HD Audio Codec Realtek ALC662

SIM

1* Built-in SIM card slot connected to Mini-PCIe

Power Supply

12V DC; 1* DC Jack (5.5* 2.5mm); Optional 9-30V DC PWR module with Terminal Block (2-Pin, 5.08mm)



Other

1* Terminal Block (4-Pin, 3.81mm) with Remote Switch and Power Indicator 1* 8-bit GPIO header with 4 inputs and 4 outputs, Input voltage range: 0-5V;

Extended Capabilities

Additional Internal Interface

1* Full Size Mini-PCIe with SIM card slot (PCIe+USB2.0, support Wi-Fi+BT/ 4G)





Environment

Operating Temperature

Non-Touch: 0~50°C; Capacitive: -20~60°C; (w/ 0.7m/s Airflow)

Storage Temperature

Non-Touch: 0 ~ 50°C; Capacitive: -20 ~ 60°C

Relative Humidity

40 °C @ 95%, Non-Condensing



Physical Characteristics

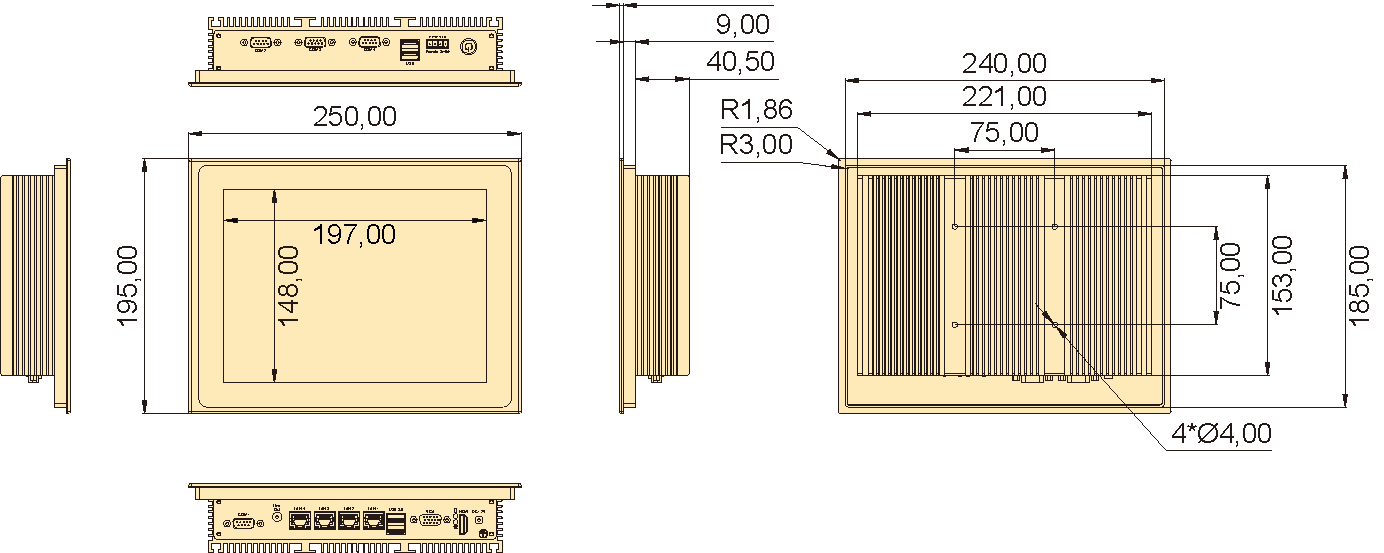

Dimensions

250*195*52.5 mm

Net Weight

Around 2kg (The final weight is subject to actual ordering configuration)



Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC

 CPU

 Code Name

Total Cores

Total Threads

Max Turbo Frequency

Base Frequency

 Cache

 TDP

Memory Types

 Integrated Graphics

Intel® Core™ I5-4300U

Haswell

2

4

2.90 GHz

1.90 GHz

3 MB Intel® Smart Cache

15W

DDR3

Intel® HD Graphics 4400

Intel® Core™ I7-4600U

Haswell

2

4

3.30 GHz

2.10 GHz

4 MB Intel® Smart Cache

15W

DDR3

Intel® HD Graphics 4400

Optional Items

Max Qty

Description

DC9-30V TO DC-12V PWR module

1

PCB, Power supply voltage conversion module, connected by header

Isolated 8-bit GPIO, 9-26V

1

Phoenix Terminal connector, connected by jumper

Isolated RS-232

6

DB9 or Phoenix Terminal connector, connected by header

Isolated 8-bit GPIO, 9-24V

1

Phoenix Terminal connector, connected by header

4G Module

1

Connected by M.2 interface

5G Module

1

Connected by M.2 interface

WiFi Module without AP mode

1

Connected by M.2 interface
