IPPC-104V2-4L6C-10W belongs to the All-in-One series, which is powered by Intel® Core™ i5, i7, supports up to 8GB DDR3L, and supports dual independent displays via HDMI and VGA. It has a built-in mSATA3.0 slot and SIM card slot for easy desktop installation. It is dust, interference and temperature resistant. Comprehensive connectivity features include 4LAN and multiple USB ports in a compact fanless design for edge computing, micro media servers, kiosks, PoS, retail, home or office use.
LCD Display | Touchscreen | ||||||
Display Type | 10.1″ TFT LCD (LED backlight) | Touchscreen Type | Projected Capacitive | Non-Touchscreen | |||
Resolution | 1280*800 | Touchscreen Method | Ten point | – | |||
Luminance | 400 cd/m2 (Typ.) | Surface | 6H | 6H | |||
Viewing Angle | 85/85/85/85 (Typ.)(CR>=10) | Durability | – | – | |||
Contrast Ratio | 800:1 (Typ.) ( Transmission ) | Transparency | 85±3% | >88% | |||
System | |||||||
CPU | Model | Intel® Core™ I5-4300U, Dual-core, 1.90 GHz | Intel® Core™ I7-4600U, Dual-core, 2.10 GHz | ||||
RAM | SO-DIMM | 1* SO-DIMM Socket, DDR3L-1333/1600 MHz, Up to 8GB | |||||
Storage | MSATA | 1* mSATA3.0 slot on board (6Gb/s) | |||||
Supported OS | Windows & Linux | Win 7, Win 8, Win 10, Win11, Linux (Ubuntu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT | |||||
I/O INTERFACE | COM | 1* RS232/422/485 header (COM2); 1* RS232/485 header (COM3); 4* RS232 header (COM1/4/5/6); | |||||
Ethernet | 4* Intel® i211 GbE LAN, support network wake-up/PXE function | ||||||
USB | 2* USB2.0; 2* USB3.0; 2* USB 2.0 header | ||||||
Video | 1* HDMI, support 3280×2000@60Hz; 1* VGA, support 1920×1200@60Hz; | 1* HDMI, support 3200×2000@60Hz; 1* VGA, support 1920×1200@60Hz; | |||||
Audio | 1* Line out; With 5.1 channels HD Audio Codec Realtek ALC662 | 1* Line out; With 5.1 channels HD Audio Codec Realtek ALC662 | |||||
SIM | 1* Built-in SIM card slot connected to Mini-PCIe | ||||||
Power Supply | 12V DC; 1* DC Jack (5.5* 2.5mm); Optional 9-30V DC PWR module with Terminal Block (2-Pin, 5.08mm) | ||||||
Other | 1* Terminal Block (4-Pin, 3.81mm) with Remote Switch and Power Indicator 1* 8-bit GPIO header with 4 inputs and 4 outputs, Input voltage range: 0-5V; | ||||||
Extended Capabilities | Additional Internal Interface |
1* Full Size Mini-PCIe with SIM card slot (PCIe+USB2.0, support Wi-Fi+BT/ 4G) | |||||
Environment | Operating Temperature | Non-Touch: 0~50°C; Capacitive: -20~60°C; (w/ 0.7m/s Airflow) | |||||
Storage Temperature | Non-Touch: 0 ~ 50°C; Capacitive: -20 ~ 60°C | ||||||
Relative Humidity | 40 °C @ 95%, Non-Condensing | ||||||

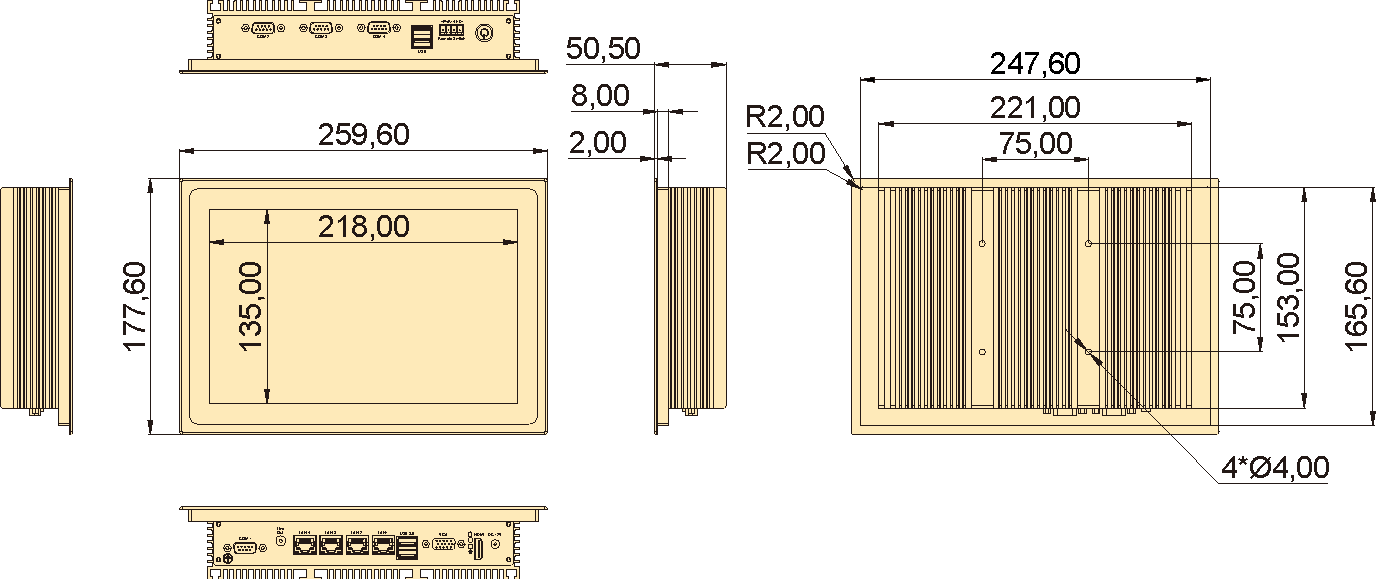

Physical Characteristics | Dimensions | 259.6*177.6*50.5 mm | |||||
Net Weight | Around 2.2kg (The final weight is subject to actual ordering configuration) | ||||||
Regulation | EMC | CE/FCC Class B, CCC | |||||
Safety | CE-LVD, RoHS, CCC | ||||||
CPU | Code Name | Total Cores | Total Threads | Max Turbo Frequency | Base Frequency | Cache | TDP | Memory Types | Integrated Graphics |
Intel® Core™ I5-4300U | Haswell | 2 | 4 | 2.90 GHz | 1.90 GHz | 3 MB Intel® Smart Cache | 15W | DDR3 | Intel® HD Graphics 4400 |
Intel® Core™ I7-4600U | Haswell | 2 | 4 | 3.30 GHz | 2.10 GHz | 4 MB Intel® Smart Cache | 15W | DDR3 | Intel® HD Graphics 4400 |
Optional Items | Max Qty | Description |
DC9-30V TO DC-12V PWR module | 1 | PCB, Power supply voltage conversion module, connected by header |
Isolated 8-bit GPIO, 9-26V | 1 | Phoenix Terminal connector, connected by jumper |
Isolated RS-232 | 6 | DB9 or Phoenix Terminal connector, connected by header |
Isolated 8-bit GPIO, 9-24V | 1 | Phoenix Terminal connector, connected by header |
4G Module | 1 | Connected by M.2 interface |
5G Module | 1 | Connected by M.2 interface |
WiFi Module without AP mode | 1 | Connected by M.2 interface |
