IPPC-104V2-4L6C-21W

The IPPC-104V2-4L6C-21W system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.
  • Equipped with the 11th Generation Intel Core/Celeron CPU, featuring Intel® Iris® Xe Graphics, providing exceptional computing performance and graphics processing capabilities.
  • With an overall thickness of less than 60mm and a narrow bezel design, making the device compact and portable.
  • Utilizes an aluminum alloy cooling backplate combined with a sealed, fanless design, achieving dust-proof, shock-resistant, and anti-interference features to ensure stable operation.
  • Offers multiple M.2 slots, WiFi+BT, 4G/5G module support, as well as a range of serial ports, Ethernet ports, USB ports, etc., catering to diverse connection and expansion needs.
  • Features a 21.5″ TFT LCD display with options for 5-wire resistive or projected capacitive touchscreen, boasting a resolution of 1920*1080, suitable for various application scenarios.
  • Supports MSATA 3.0 slots and SO-DIMM DDR3L memory slots, with a maximum of 8GB RAM, meeting diverse storage and performance requirements.
  • Compatible with both Windows and Linux operating systems, including Win 7 to Win 11, Ubuntu, Debian, and more, providing a wide range of system options.
  • Equipped with multiple HDMI and VGA interfaces, supporting high-resolution video output for various display devices and scenarios.
  • Integrated with Realtek ALC662 5.1-channel HD audio codec, delivering superior audio output.
  • Supports 12V DC power supply with an optional 9-30V DC PWR module. Features a GPIO interface with remote switch and power indicator, offering additional hardware control functionalities.

IPPC-104V2-4L6C-21W belongs to the All-in-One series, which is powered by Intel® Core™ i5, i7, supports up to 8GB DDR3L, and supports dual independent displays via HDMI and VGA. It has a built-in mSATA3.0 slot and SIM card slot for easy desktop installation. It is dust, interference and temperature resistant. Comprehensive connectivity features include 4LAN and multiple USB ports in a compact fanless design for edge computing, micro media servers, kiosks, PoS, retail, home or office use.

LCD Display

Touchscreen

Display Type

21.5″ TFT LCD (LED backlight)

Touchscreen Type

Projected Capacitive

Non-Touchscreen

Resolution

1920*1080

Touchscreen Method

Ten point

–

Luminance

250 cd/m2 (Typ.)

Surface

6H

6H

Viewing Angle

89/89/89/89 (Typ.)(CR>=10)

Durability

–

–

Contrast Ratio

3000 : 1 (Typ.) ( Transmission )

Transparency

85±3%

>88%

System

CPU

Model

Intel® Core™ I5-4300U, Dual-core, 1.90 GHz

Intel® Core™ I7-4600U, Dual-core, 2.10 GHz

RAM

SO-DIMM

1* SO-DIMM Socket, DDR3L-1333/1600 MHz, Up to 8GB

Storage

MSATA

1* mSATA3.0 slot on board (6Gb/s)

Supported OS

Windows & Linux

Win 7, Win 8, Win 10, Win11, Linux (Ubuntu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT















I/O INTERFACE

COM

1* RS232/422/485 header (COM2); 1* RS232/485 header (COM3); 4* RS232 header (COM1/4/5/6);

Ethernet

4* Intel® i211 GbE LAN, support network wake-up/PXE function

USB

2* USB2.0; 2* USB3.0; 2* USB 2.0 header



Video

1* HDMI, support 3280×2000@60Hz; 1* VGA, support 1920×1200@60Hz;

1* HDMI, support 3200×2000@60Hz; 1* VGA, support 1920×1200@60Hz;

Audio

1* Line out; With 5.1 channels HD Audio Codec Realtek ALC662

1* Line out; With 5.1 channels HD Audio Codec Realtek ALC662

SIM

1* Built-in SIM card slot connected to Mini-PCIe

Power Supply

12V DC; 1* DC Jack (5.5* 2.5mm); Optional 9-30V DC PWR module with Terminal Block (2-Pin, 5.08mm)



Other

1* Terminal Block (4-Pin, 3.81mm) with Remote Switch and Power Indicator 1* 8-bit GPIO header with 4 inputs and 4 outputs, Input voltage range: 0-5V;

Extended Capabilities

Additional Internal Interface



1* Full Size Mini-PCIe with SIM card slot (PCIe+USB2.0, support Wi-Fi+BT/ 4G)





Environment

Operating Temperature

Non-Touch: 0~50°C; Capacitive: -20~60°C; (w/ 0.7m/s Airflow)

Storage Temperature

Non-Touch: 0 ~ 50°C; Capacitive: -20 ~ 60°C

Relative Humidity

40 °C @ 95%, Non-Condensing



Physical Characteristics

Dimensions

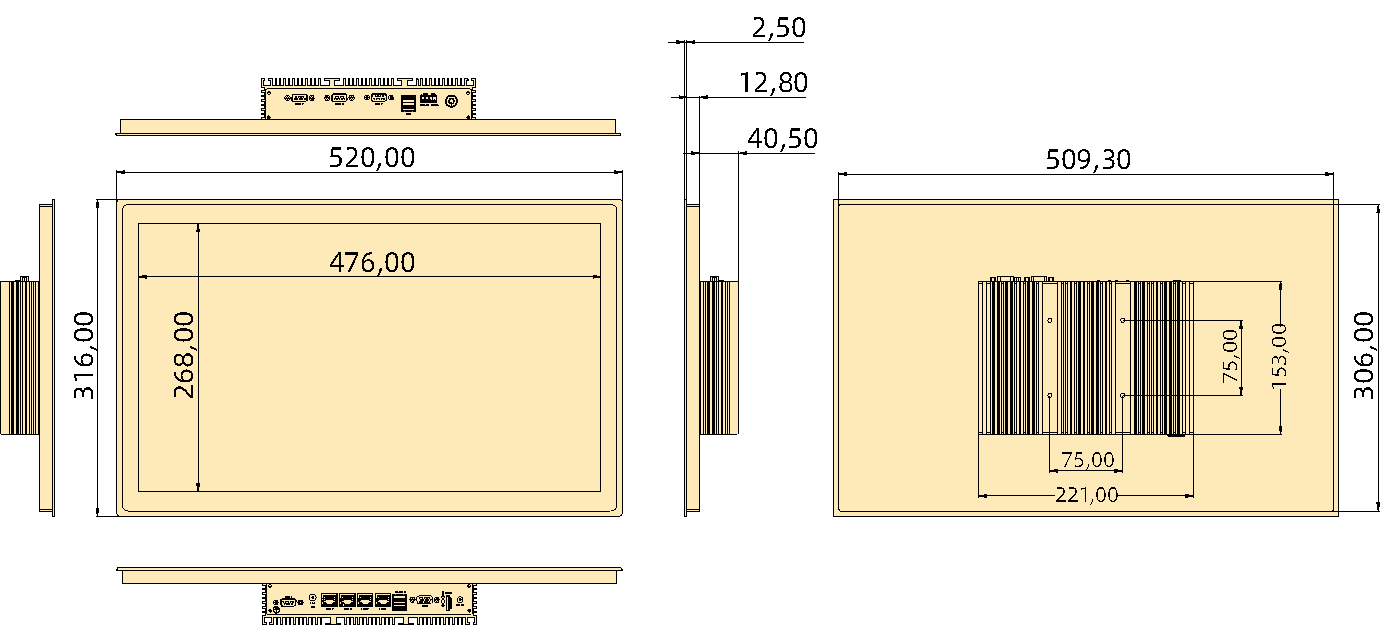

520*316*55.8 mm

Net Weight

Around 6.3kg (The final weight is subject to actual ordering configuration)



Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC

 CPU

 Code Name

Total Cores

Total Threads

Max Turbo Frequency

Base Frequency

 Cache

 TDP

Memory Types

 Integrated Graphics

Intel® Core™ I5-4300U

Haswell

2

4

2.90 GHz

1.90 GHz

3 MB Intel® Smart Cache

15W

DDR3

Intel® HD Graphics 4400

Intel® Core™ I7-4600U

Haswell

2

4

3.30 GHz

2.10 GHz

4 MB Intel® Smart Cache

15W

DDR3

Intel® HD Graphics 4400

Optional Items

Max Qty

Description

DC9-30V TO DC-12V PWR module

1

PCB, Power supply voltage conversion module, connected by header

Isolated 8-bit GPIO, 9-26V

1

Phoenix Terminal connector, connected by jumper

Isolated RS-232

6

DB9 or Phoenix Terminal connector, connected by header

Isolated 8-bit GPIO, 9-24V

1

Phoenix Terminal connector, connected by header

4G Module

1

Connected by M.2 interface

5G Module

1

Connected by M.2 interface

WiFi Module without AP mode

1

Connected by M.2 interface
